7
DISASSEMBLY AND REASSEMBLY
7.2.5
Replacing the LCD
How to detach the LCD
(1) Detach the control panel assembly (Refer to subsection 7.1.3.).
(2) Detach the control panel board (Refer to subsection 7.2.4.).

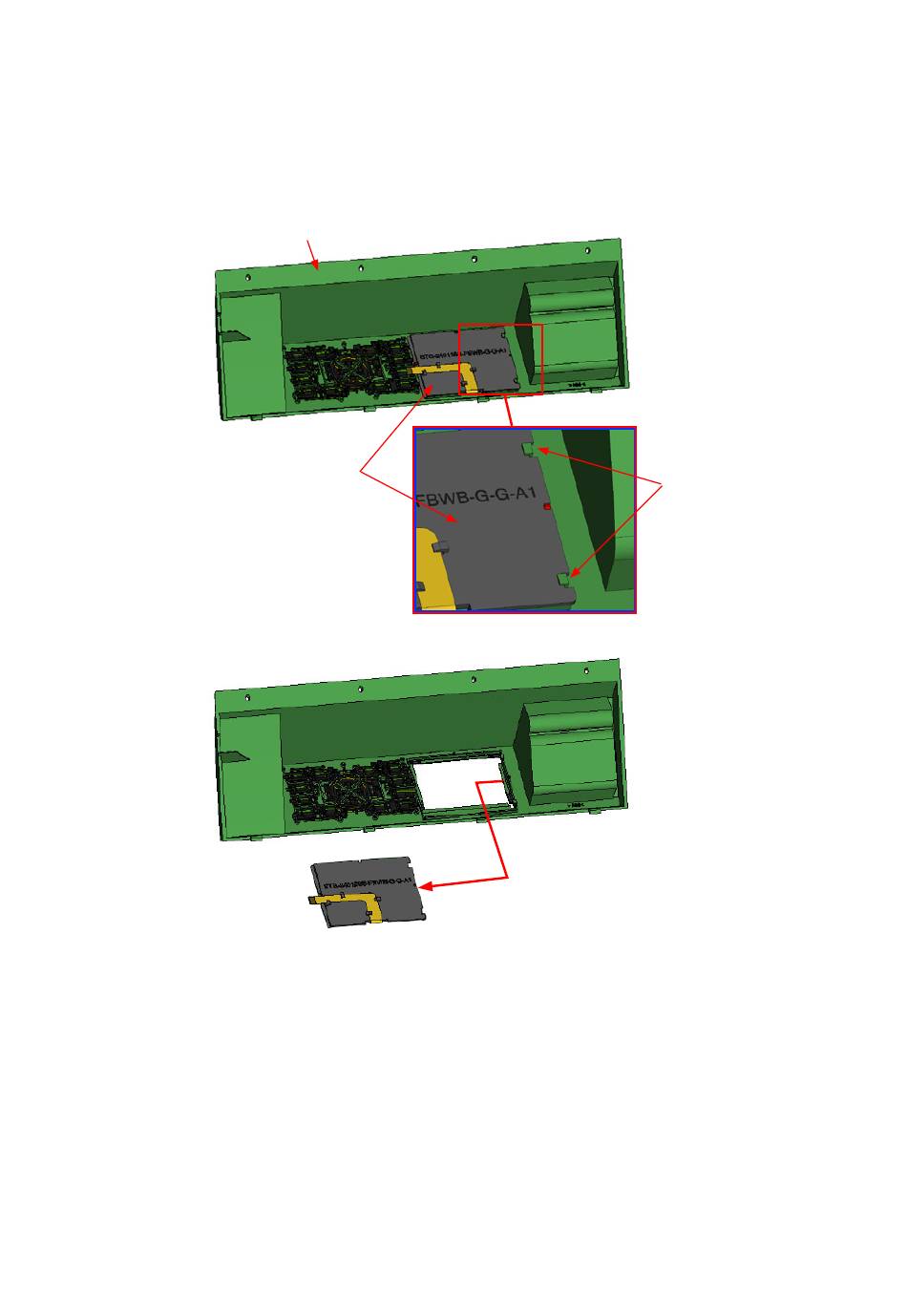

(3) Slide the LCD to the left from the hooks, and then detach the LCD from the control panel cover.
Control panel cover
LCD
Hook
How to reinstall the LCD
(1) Reattach the LCD in the reverse order in which it was detached.
(2) Confirm the wiring for control panel board flexible cable (Refer to subsection 7.4.).
CE7000-UM-251-9370
7-17
