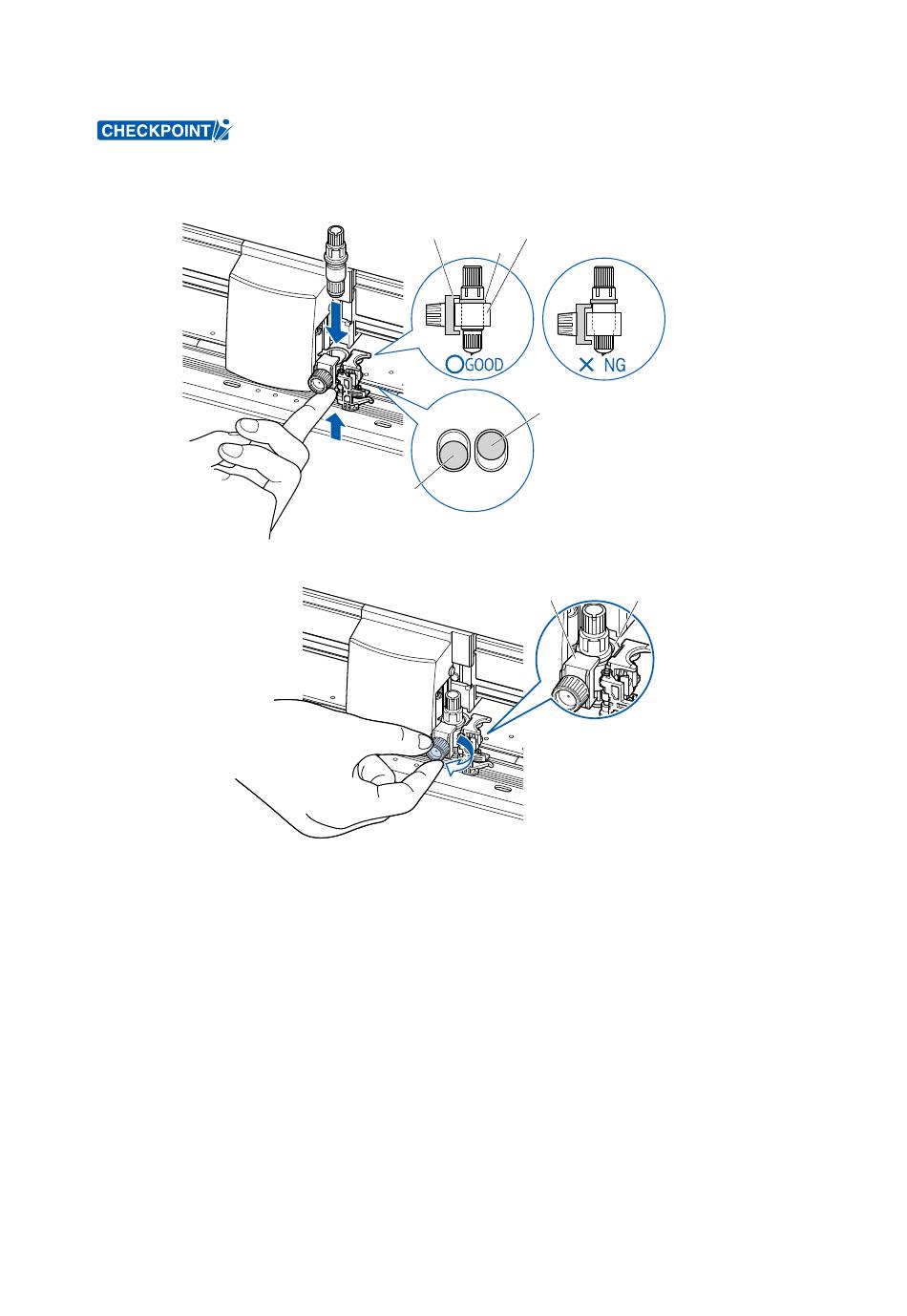

(2) While pushing the tool holder in the upward direction, push the tool all the way into the holder until its
flange contacts the upper part of the holder.
• When pushing the tool holder with your fingers, the blade tip may be protruding. Take care not to cut
your fingers.
(3) Make sure that the tool bracket is engaged on the tool's flange, and then tighten the screw.
CE7000-UM-251-9370
Bracket to hold tool
Flange
Tool holder (Forward)
Top view
Bracket to hold tool
3-12
3 PARTS NAMES and FUNCTIONS
Tool holder
This position of tool holder is
not able to set tool (backward).
Flange
