7
DISASSEMBLY AND REASSEMBLY
7.1.4

Replacing the Center Cover

How to detach the center cover
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the control panel assembly (Refer to subsection 7.1.3.).

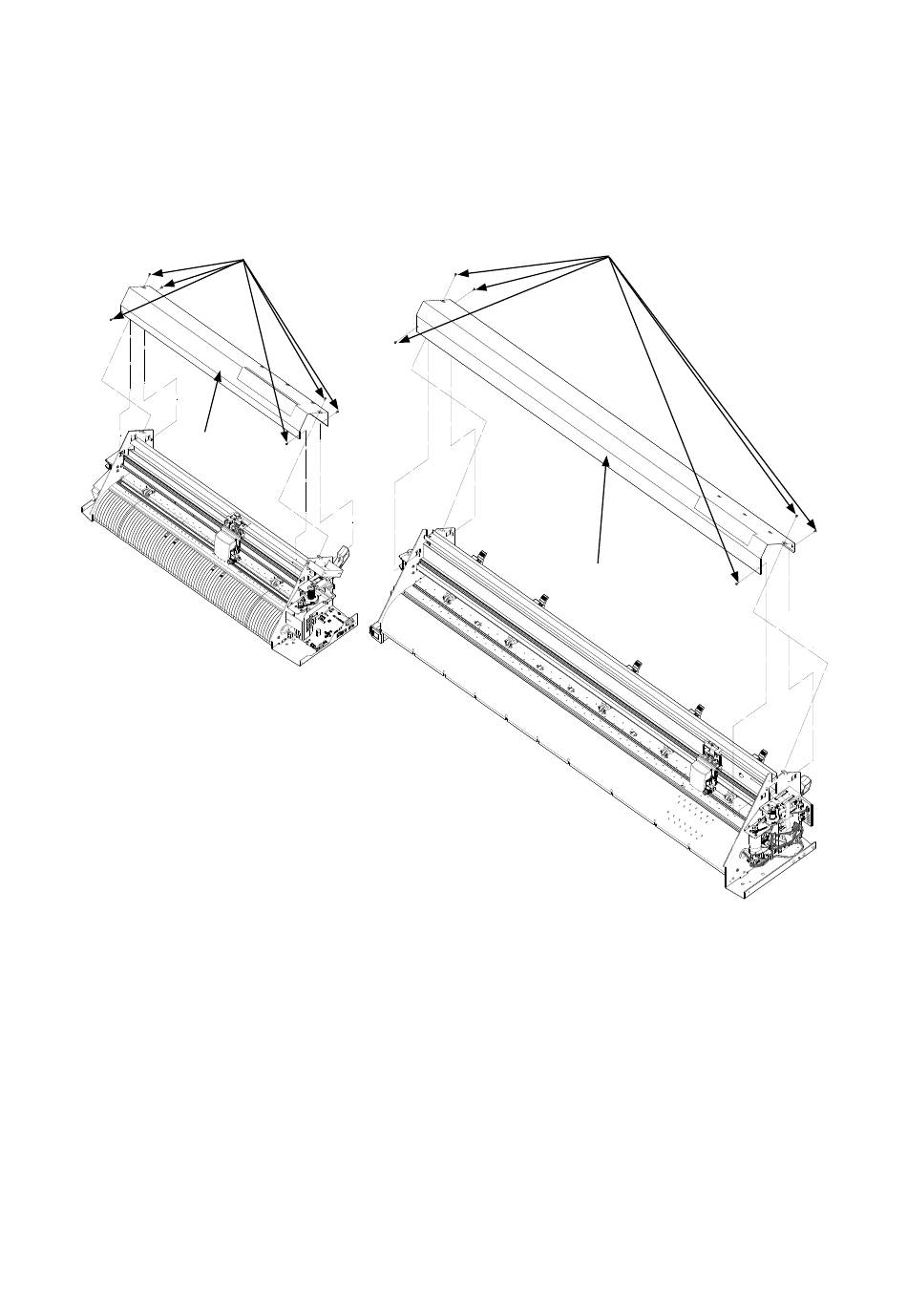

(3) Remove the six M3L6 binding head screws holding the center cover.
CE7000-40/60
CE7000-130/130AP/160
M3L6 binding head screw
M3L6 binding head screw
Center cover
Center cover
(4) Detach the center cover.
How to reinstall the center cover assembly
(1) Reattach the center cover in the reverse order in which it was detached.
CE7000-UM-251-9370
7-3
