DISASSEMBLY AND REASSEMBLY
Confirming the cables wiring from the Y-motor to the main board
The cables for X and Y motor has same connectors, therefore do not connect those cables incorrectly.
The Y motor has the power cable and the power-relay cable and the encoder cable.

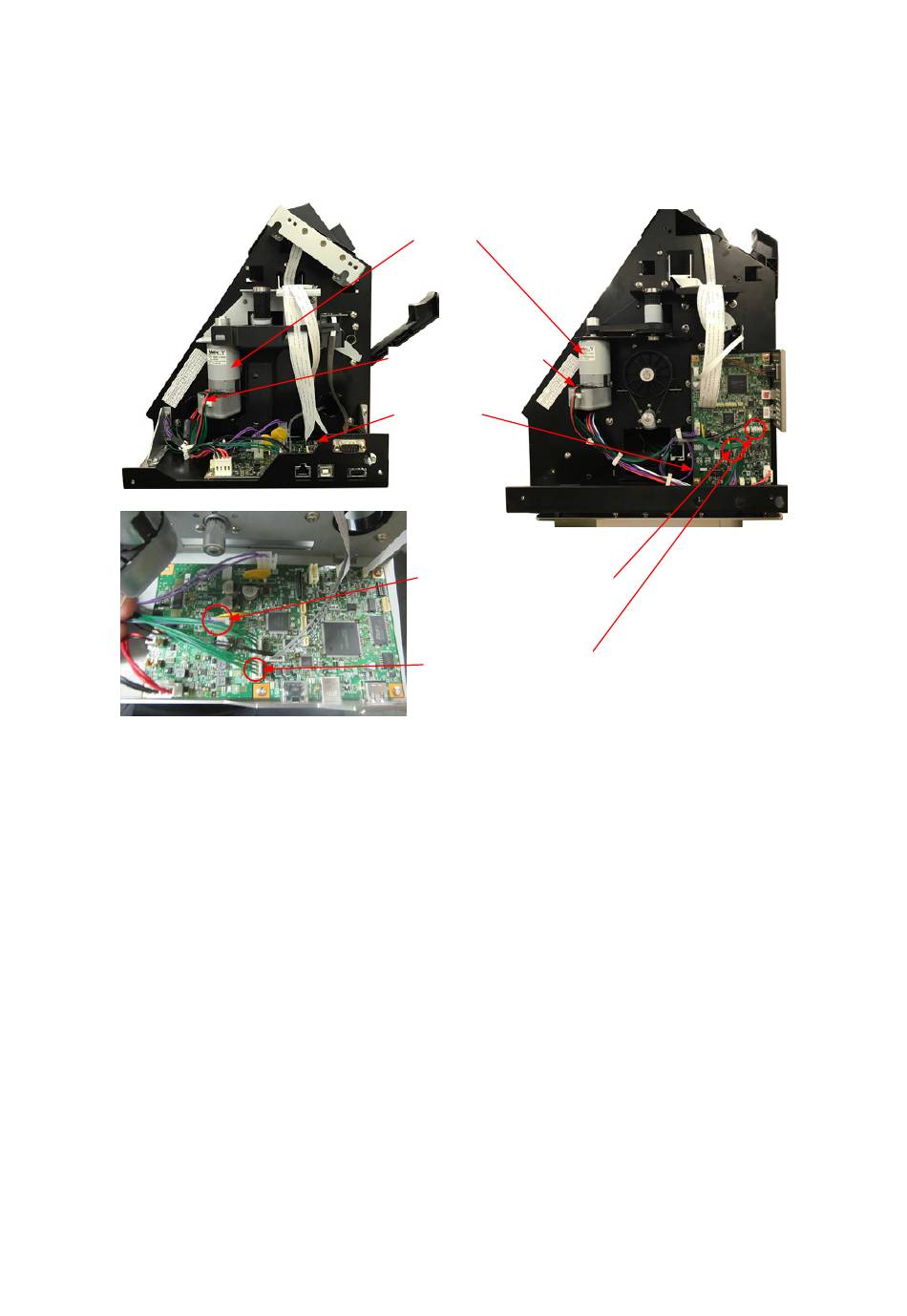

Connect these cables to correct connectors as shown in the picture below.
CE7000-40/60
CE7000-130/130AP/160
Y motor
Y motor power cable
Main board
Y motor power relay cable
Y motor encoder cable
CE7000-UM-251-9370
