7

DISASSEMBLY AND REASSEMBLY

7.1

Exterior Parts

7.1.1

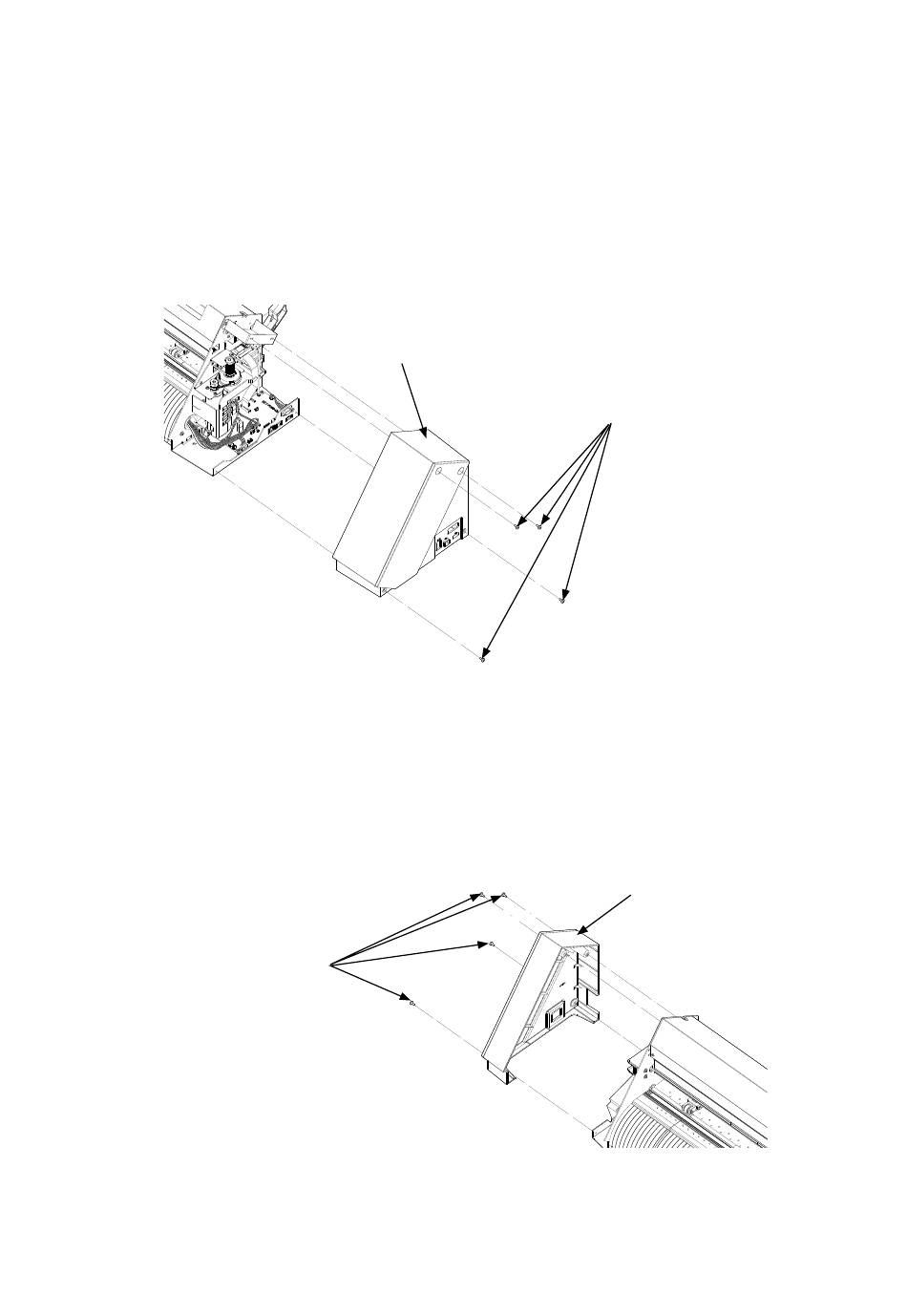

Replacing the Right Side Cover

How to detach the right side cover
(1) Remove the four M4L6 binding head screws from the right side cover.
(2) Detach the right side cover.
How to reinstall the right side cover
(1) Reattach the right cover in the reverse order in which it was detached.
7.1.2

Replacing the Left Side Cover

How to detach the left side cover
(1) Remove the four M4L6 binding head screws from the left side cover.
(2) Detach the left side cover.
M4L6 binding head screw
How to reinstall the left side cover
(1) Reattach the left cover in the reverse order in which it was detached.
CE7000-UM-251-9370
Right side cover
7-1
7 DISASSEMBLY AND REASSEMBLY
M4L6 binding head screw
Left side cover
