GRAPHTEC CE7000-40 Service Manual page 107

CE7000-130/130AP/160
How to detach the X-motor
(1) Detach the right side cover (Refer to subsection 7.1.1.).

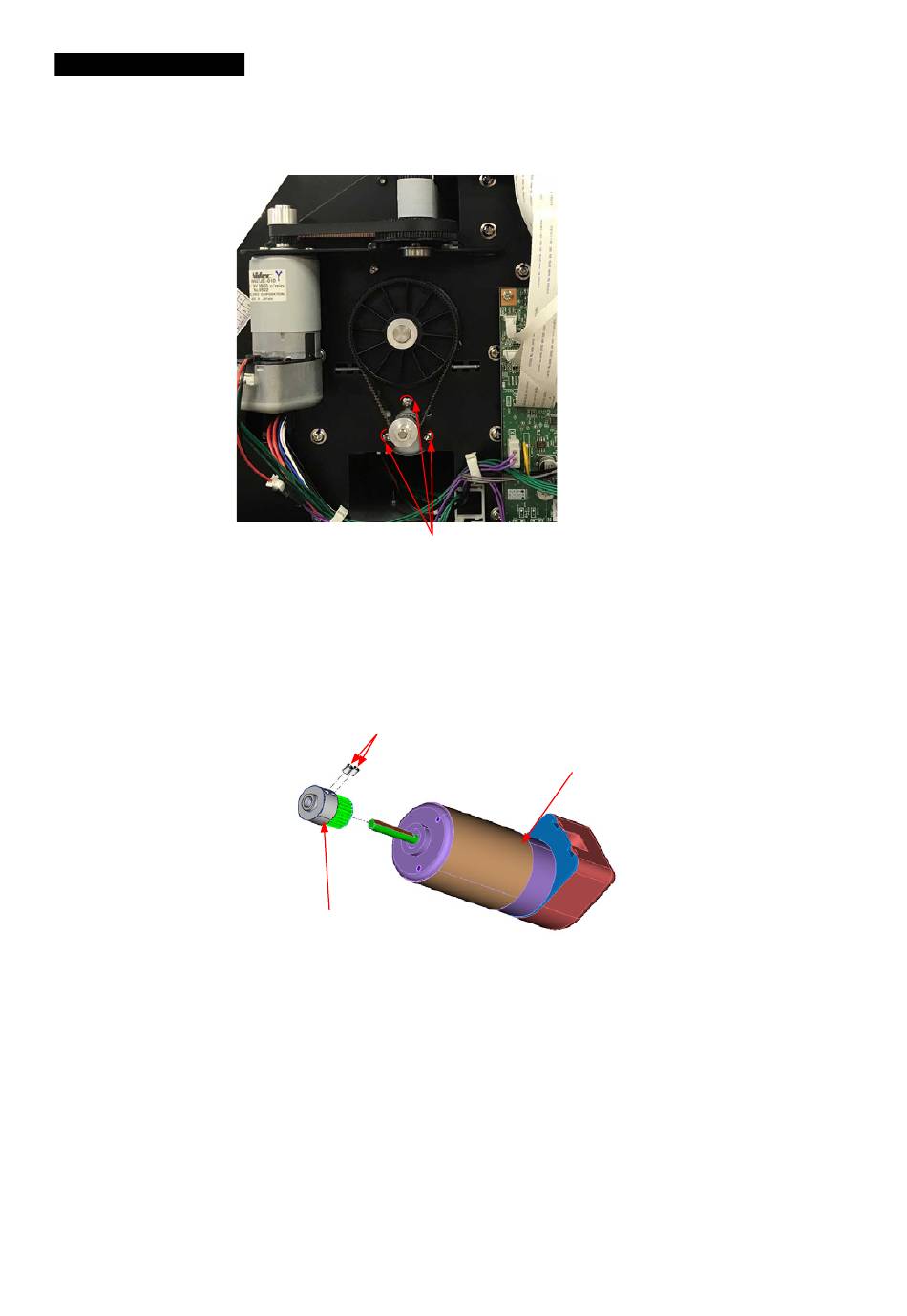

(2) Mark the position of screws which are holding the X motor as shown in the picture below.
(3) Remove the three M3L6 binding head screws holding the X-motor, then detach the X-motor from the
hole of right side plate.
(4) Disconnect the X motor power relay cable and the X motor encoder cable from the X motor.
(5) Loosen the two M3L4WP set screws holding the X motor pulley, and then detach the X-motor pulley
from the X motor.
CE7000-UM-251-9370
Mark the position of screws which are holding the X motor.
M3L4WP set screw
X motor pulley
7 DISASSEMBLY AND REASSEMBLY
X motor
7-33
