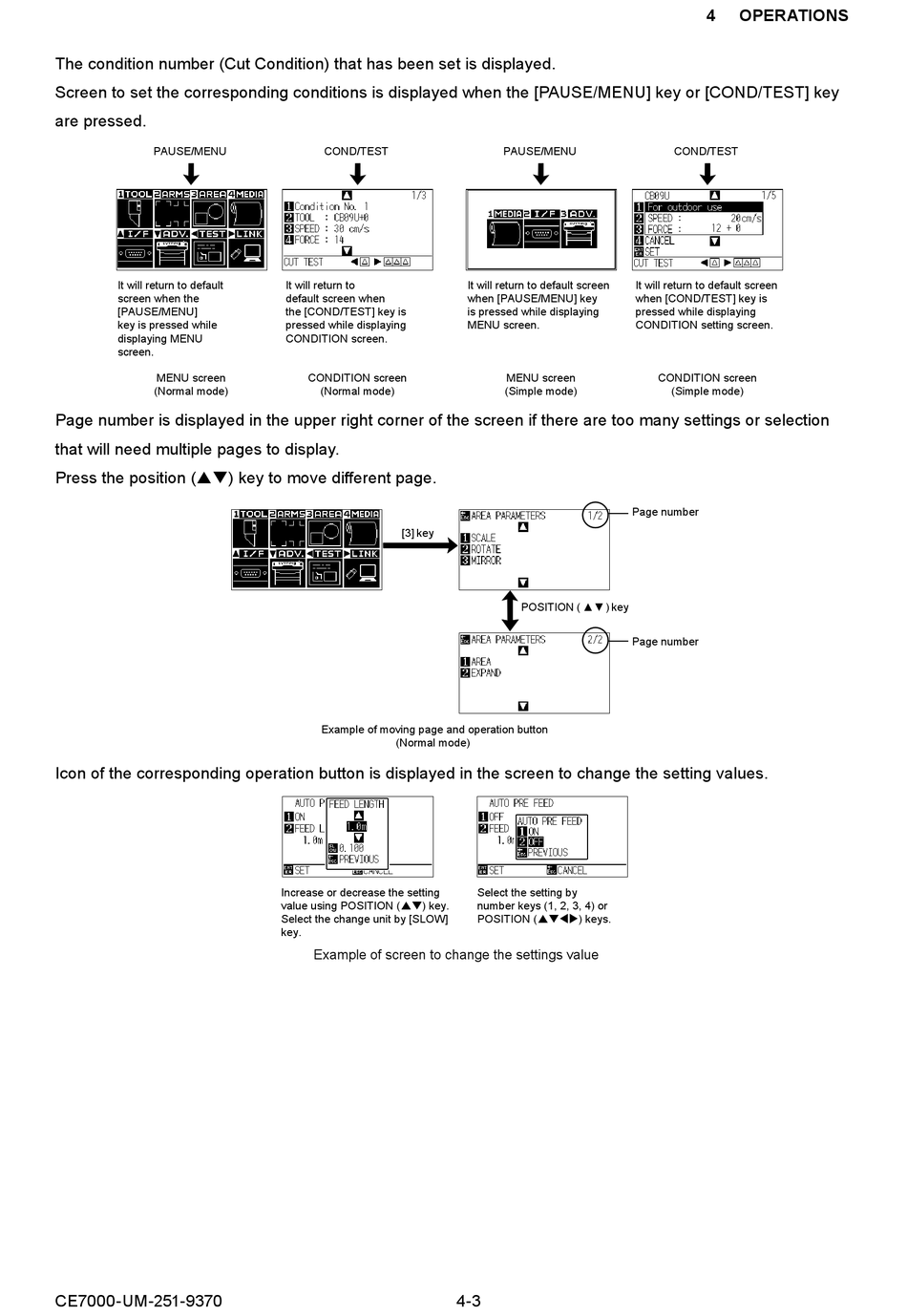

The condition number (Cut Condition) that has been set is displayed.
Screen to set the corresponding conditions is displayed when the [PAUSE/MENU] key or [COND/TEST] key
are pressed.
PAUSE/MENU
It will return to default
screen when the
[PAUSE/MENU]
key is pressed while
displaying MENU
screen.
MENU screen
(Normal mode)
Page number is displayed in the upper right corner of the screen if there are too many settings or selection
that will need multiple pages to display.
Press the position (pq) key to move different page.
Icon of the corresponding operation button is displayed in the screen to change the setting values.
CE7000-UM-251-9370
COND/TEST
It will return to
default screen when
the [COND/TEST] key is
pressed while displaying
CONDITION screen.
CONDITION screen
(Normal mode)
[3] key
Example of moving page and operation button
(Normal mode)
Increase or decrease the setting
value using POSITION () key.
Select the change unit by [SLOW]
key.
Example of screen to change the settings value
PAUSE/MENU
It will return to default screen
when [PAUSE/MENU] key
is pressed while displaying
MENU screen.
MENU screen
(Simple mode)
POSITION ( ▲▼ ) key
Select the setting by
number keys (1, 2, 3, 4) or
POSITION () keys.
4-3
4
OPERATIONS
COND/TEST
It will return to default screen
when [COND/TEST] key is
pressed while displaying
CONDITION setting screen.
CONDITION screen
(Simple mode)
Page number
Page number
