GRAPHTEC CE7000-40 Service Manual page 93

Regarding the spare parts of pen block
The spare parts of pen block is not including the registration mark sensor.
When the pen block is replacing, remove the registration mark sensor from the used pen block.
How to reinstall the pen block
(1) Attach the pen block to the Y-slider.

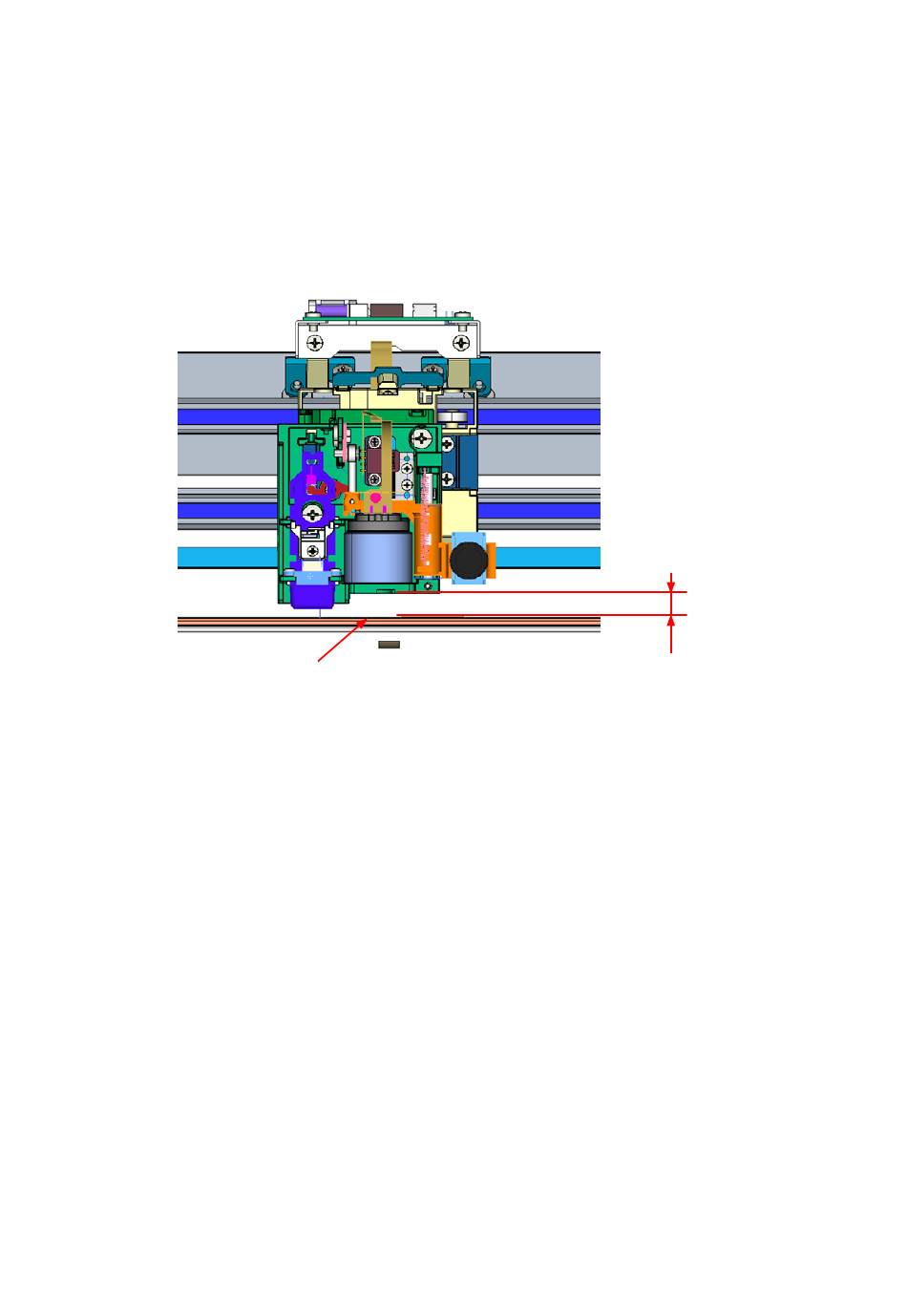

(2) Fasten the two M4L6 binding head screws to attach the pen block so that there is a gap of 10 mm
between the bottom of the pen block and the cutting mat. Perform a visual check to make sure that the
pen block is not mounted at an angle.
(3) Reattach the other parts in the reverse order in which they were detached.
(4) Perform the pen force adjustment (Refer to subsection 8.11.2.).
(5) Perform the registration mark sensor sensitivity adjustment (Refer to subsection 8.13.).
(6) Perform the registration mark sensor offset adjustment (Refer to subsection 8.14.2.).
CE7000-UM-251-9370
Cutting mat
7 DISASSEMBLY AND REASSEMBLY
7-19
10 mm
