8 Electrical Adjustment

8.11 Adjusting the Pen Force

This adjustment will set the pen force.
Required jigs and tools when the pen block assembly was replaced
• Correx Dial Tension gauges (1000 g, 500 g, 300 g, 50 g)
• Cutter plunger

8.11.1 Inputting the pen force from the recorded value

Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board.
How to adjust the pen force from the recorded value
(1) Turn on the power while pressing the SLOW and the ENTER keys.
(2) Load a media to the plotter.

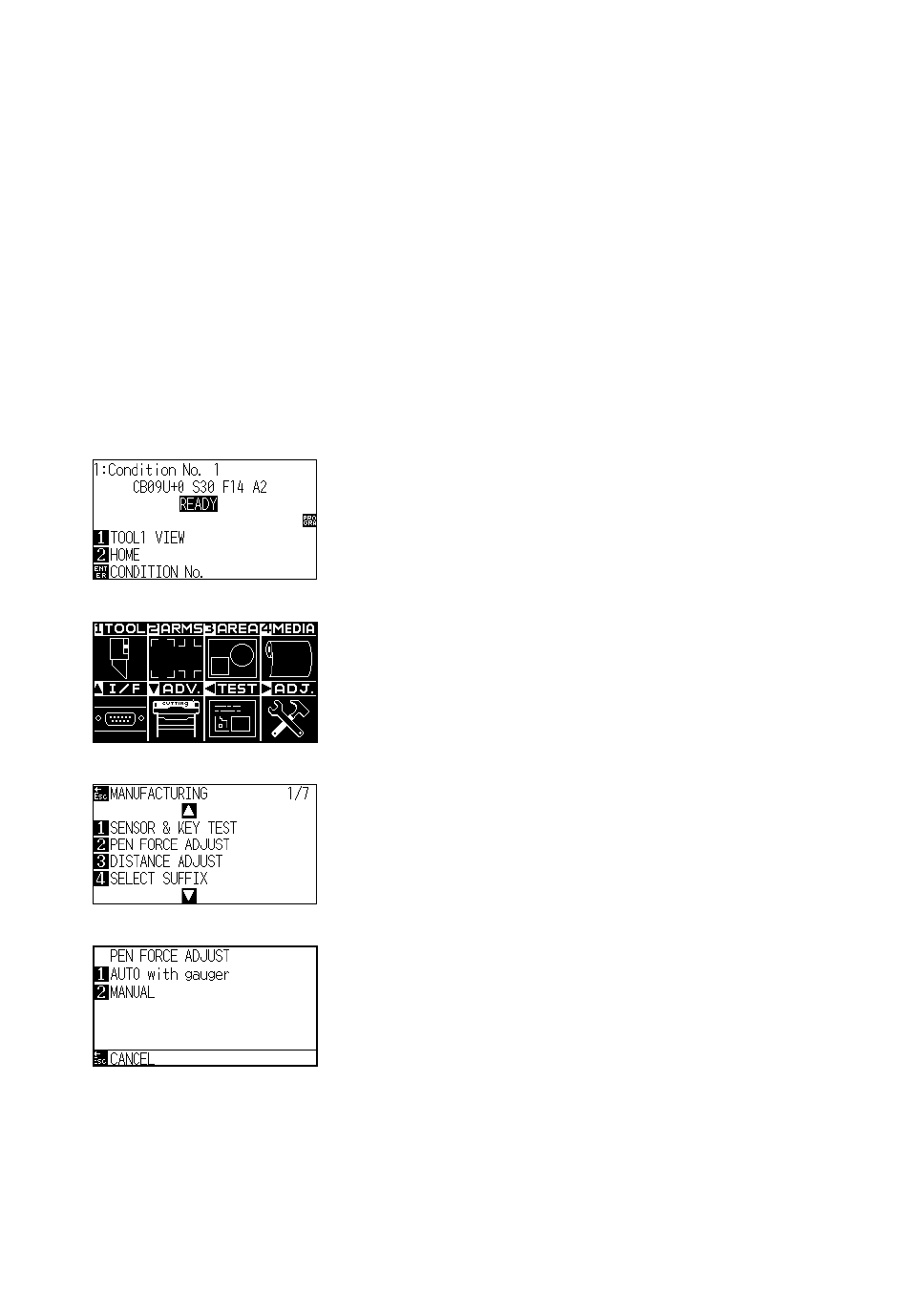

(3) The plotter displays the following menu.
(4) Press the PAUSE/MENU key to display the following menu.
(5) Press the Right Position key to display the adjustment menu shown below.
(6) Press the F2 key (PEN FORCE ADJUST) to display the following menu.
CE7000-UM-251-9370 8-19
