DISASSEMBLY AND REASSEMBLY

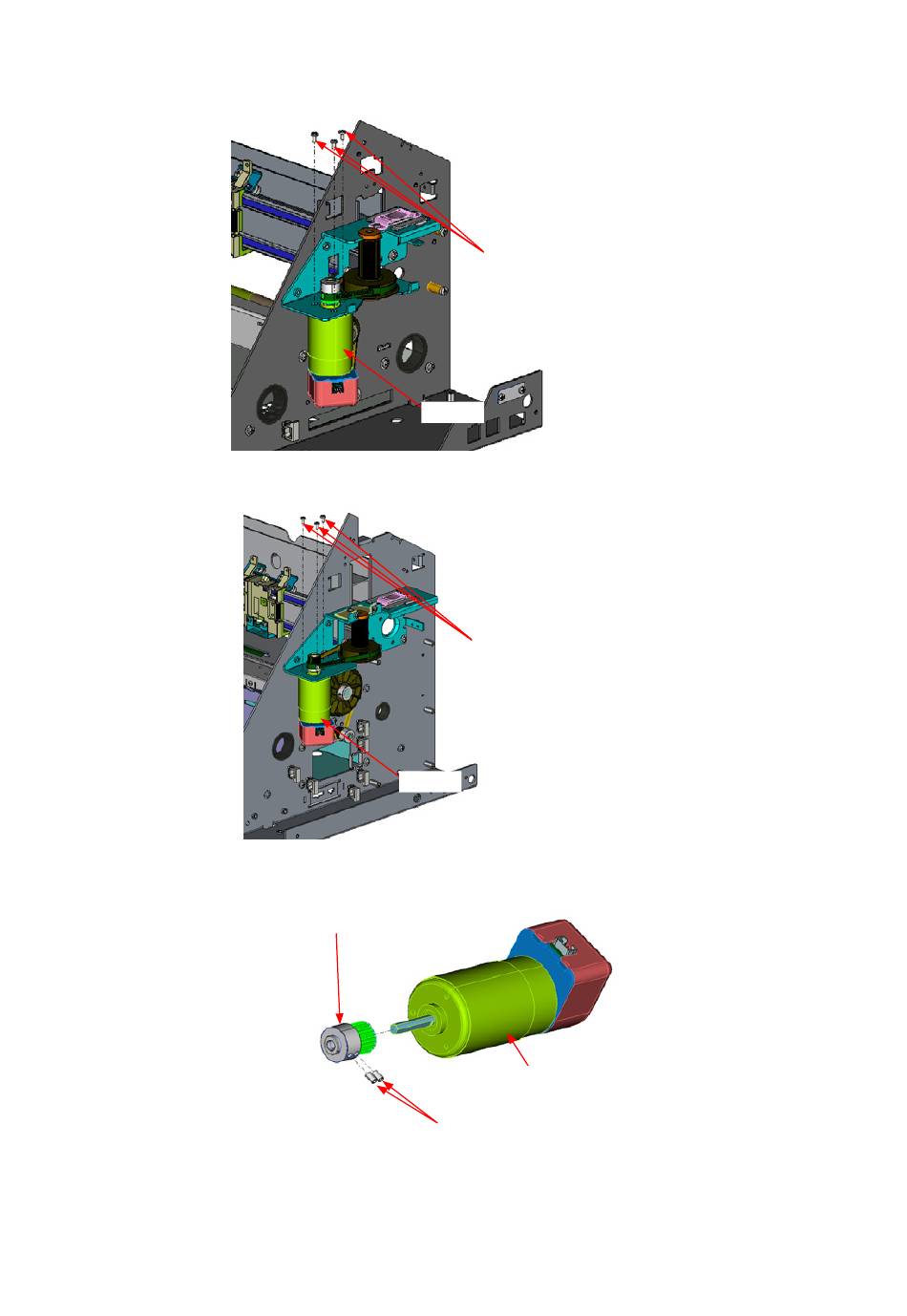

(5) Remove the three M3L6 binding head screws holding the Y-motor.
CE7000-40/60
M3L6 binding head screw
Y Motor
CE7000-130/130AP/160
M3L6 binding head screw
Y Motor
(6) Detach the Y-motor.
(7) Loosen the two M3L4WP set screws to detach the Y-motor pulley.
Y motor pulley
Y motor
M3L4WP set screw
(8) Detach the Y-motor pulley.
