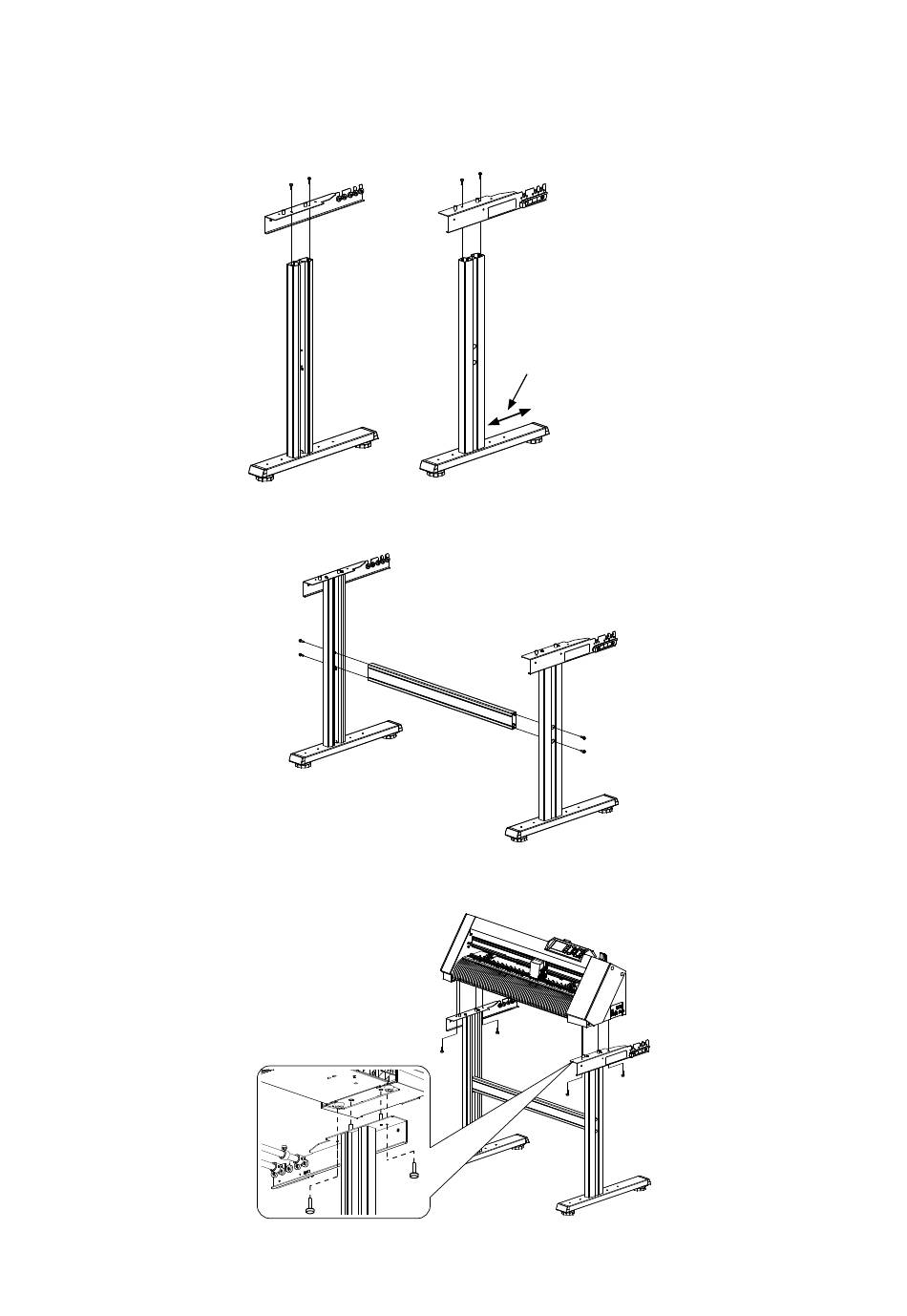

(3) Assemble the Media stocker L and R to the left and right stand sides. And when the Media stocker is
assembling to the side bar, confirm the length of foot that the longer side is rear side.
Insert the four M5L16 cap screws to the thread of the stand side bar by hand, and then tighten them by
hand. Then fasten four M5L16 cap screws by using the Allen wrench.
(4) Insert the four M5L16 cap screws to the thread of the center bar by hand (two on each side), and then
tighten them by hand. Then fasten four M5L16 cap screws by using the Allen wrench.
(5) Mount the plotter on the stand by inserting the positioning pins on the stand into the positioning holes on
the underside of the plotter. Fasten with the four M4L20 thumb screws.
CE7000-UM-251-9370
Longer side is rear.
