8 Electrical Adjustment

8.15 Adjusting the X Media Sensor Position

This adjustment will set the registration mark sensor position and the X media sensor position.

8.15.1 Inputting the X Media Sensor Position from the recorded value

Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board.
How to input the X media sensor position
(1) Turn on the power while pressing the SLOW and the ENTER keys.

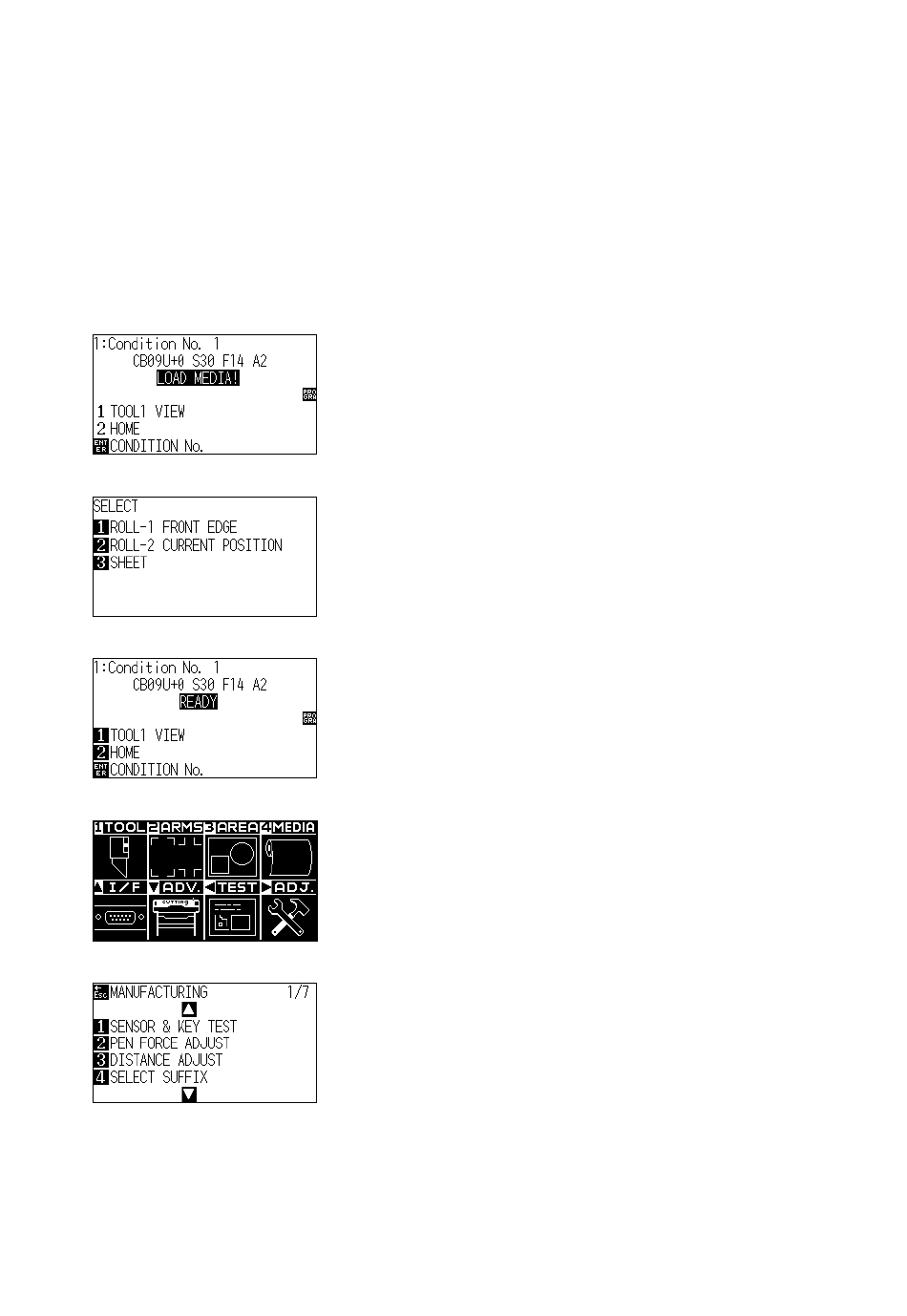

(2) The plotter displays the following menu.
(3) Load the sheet media to the plotter, and then the plotter displays the following menu.
(4) Press the 3 key (SHEET) to display the following menu.
(5) Press the PAUSE/MENU key to display the following menu.
(6) Press the Right position key to display the following menu.
