GRAPHTEC CE7000-40 Service Manual page 143

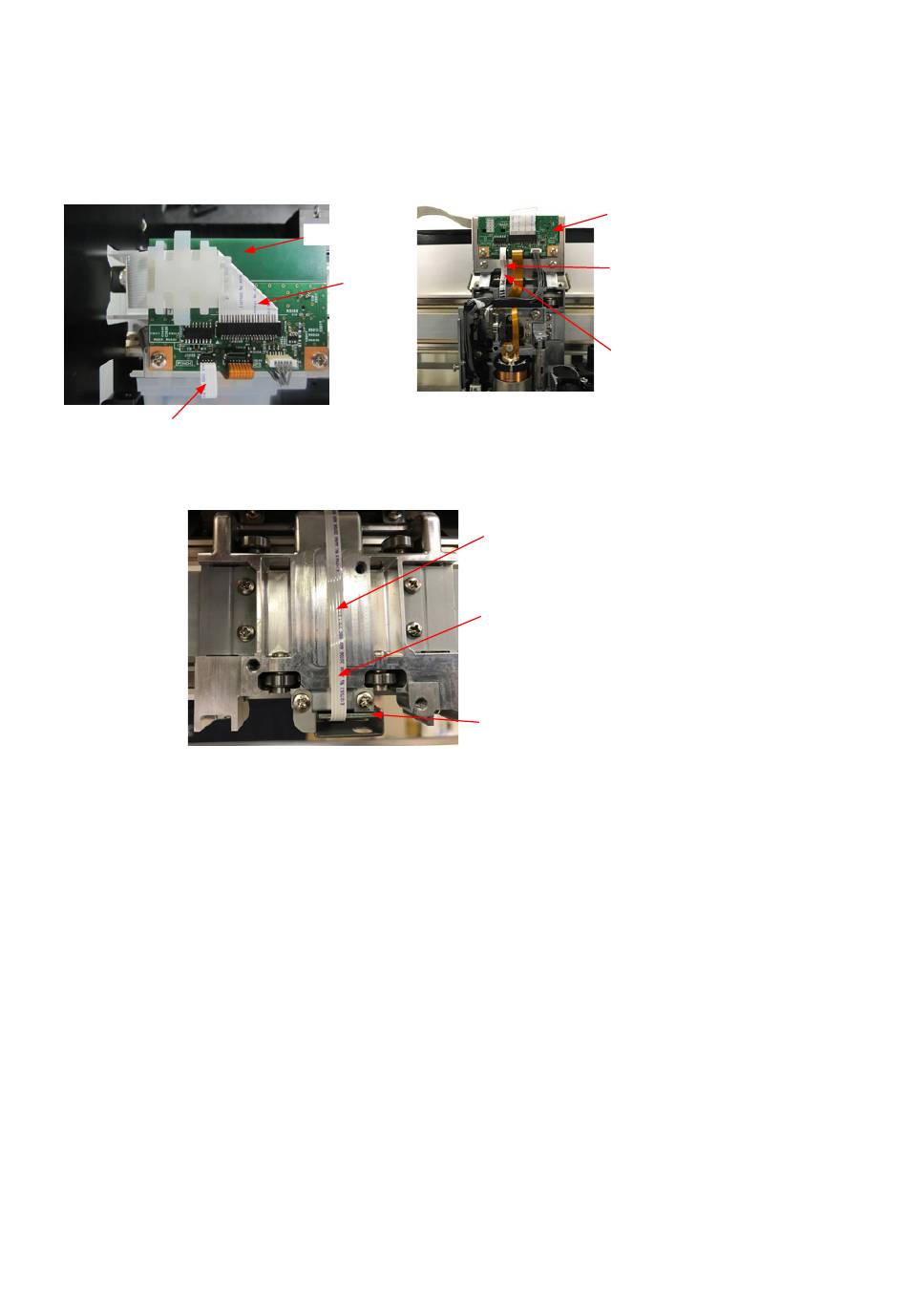

Confirming the flexible cable wiring from the push roller sensor board to the Y relay board
The flexible cable has a right side and a wrong side, connect the flexible cable correctly as shown in the
picture below.
[Y relay board side]
CE7000-40/60
Confirm the printed side,
which is facing to the up.
[Push roller sensor board side]
CE7000-UM-251-9370
CE7000-130/130AP/60
Y relay board
7-69
7 DISASSEMBLY AND REASSEMBLY
Y relay board
Push roller sensor flexible cable
Confirm the printed side,
which is facing to the front.
Confirm the printed side,
which is facing to the front.
Push roller sensor flexible cable
Push roller sensor board
