7.2.15 Replacing the Drive Roller Shaft for CE7000-40/60

How to detach the drive roller shaft
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the left side cover (Refer to subsection 7.1.2.).
(3) Detach the front guide (Refer to subsection 7.1.5.).
(4) Detach the rear guide (Refer to subsection 7.1.6.).

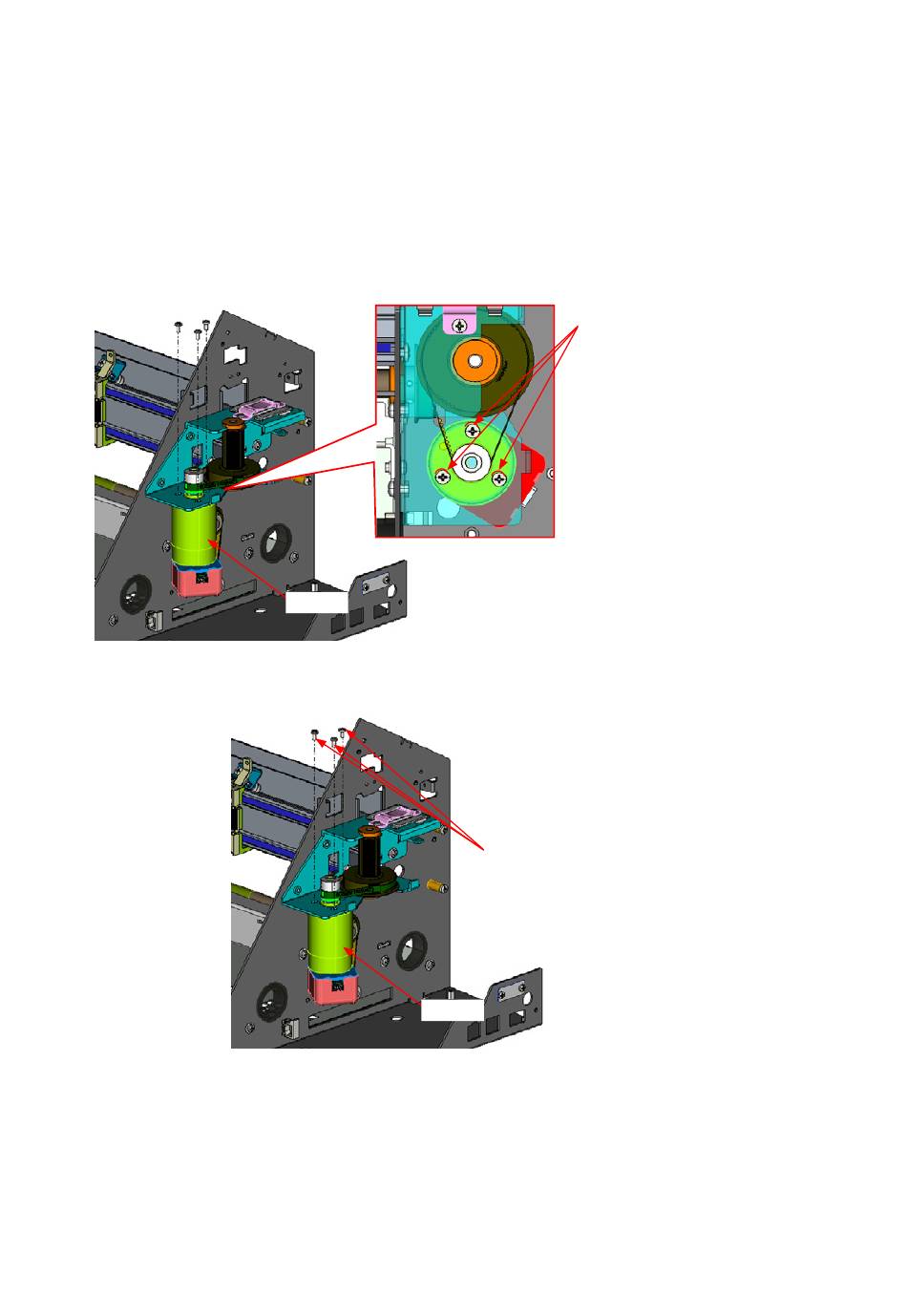

(5) Mark the position of screws which are holding the Y motor as shown in the picture below.
CE7000-40/60
(6) Remove the three M3L6 binding head screws holding the Y-motor.
(7) Detach the Y motor.
(8) Disconnect the Control Panel Flexible cable form the main board.
CE7000-UM-251-9370
Y Motor
CE7000-40/60
7
DISASSEMBLY AND REASSEMBLY
Mark the position of screws
which are holding the Y motor.
M3L6 binding head screw
Y Motor
7-40
