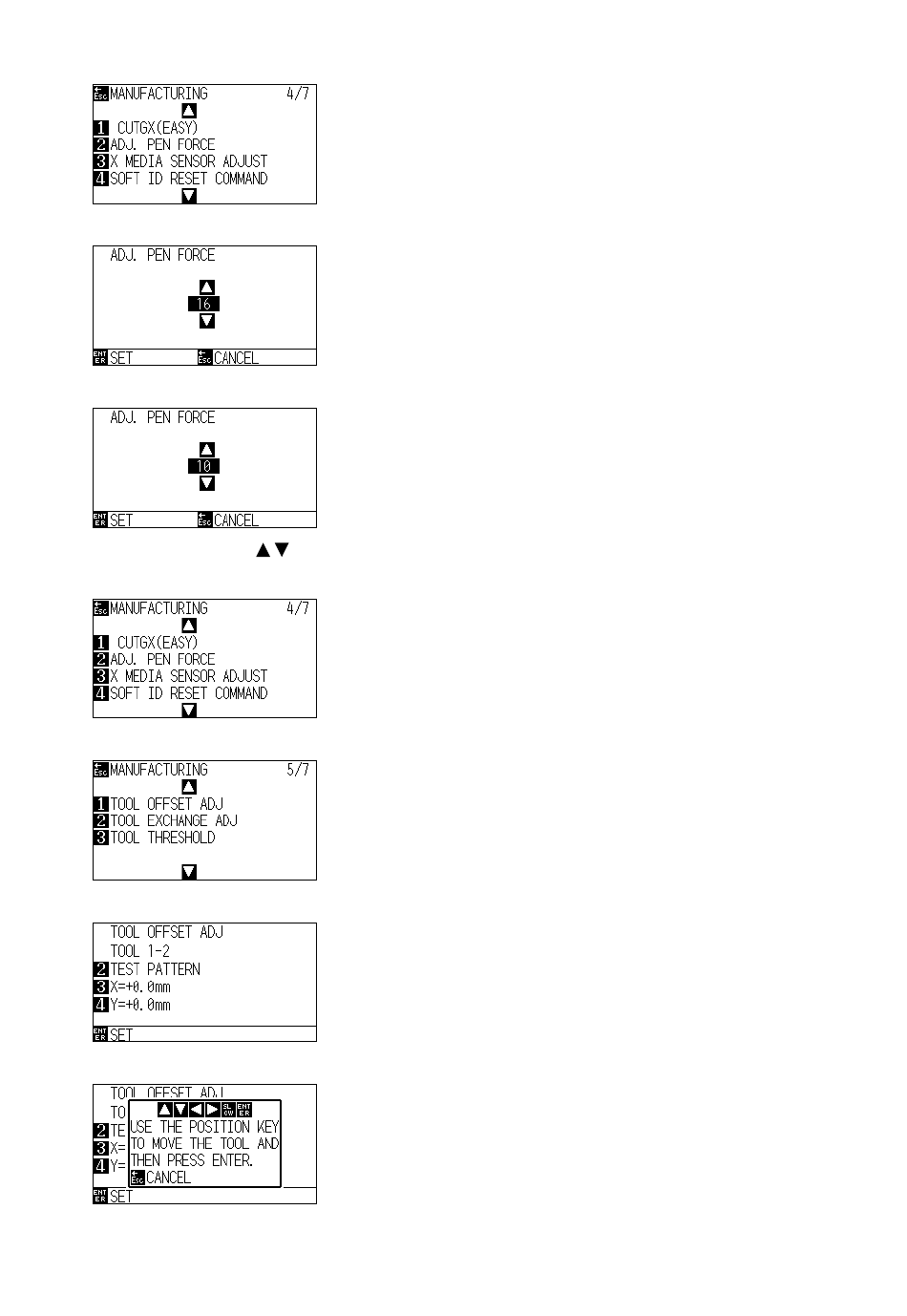

(8) Press the down position key until the following menu is displayed.
(9) Press the F2 key to display the following menu.
(10) Set adjustment pen force to 10 for the fiber tip pens.
Press the POSITION (
(11) Press the ENTER key to display the following menu.
(12) Press the UP or Down position key until the following menu is displayed.
(13) Press the F2 key to display the following menu.
(14) Press the F2 key to display, the following menu is displayed.
Use the Position keys to move the pen to an open area to plot the adjustment pattern.
CE7000-UM-251-9370
) key to increase or decrease the value to set.
8-52
8 Electrical Adjustment
