8 Electrical Adjustment

8.12.2 Adjusting the distance accuracy from the measured distance

When the drive roller was replaced, adjust the distance accuracy from the measuring distance.
Required jigs and tools
• A3 or larger size sheet of paper
• A ruler which is measured longer than 360 mm
• Fiber-tip pen and plunger.
How to adjust the distance accuracy from the measured distance
(1) Mount a fiber tip pen to the rear tool holder.
(2) Turn on the power while pressing the SLOW and the ENTER keys.

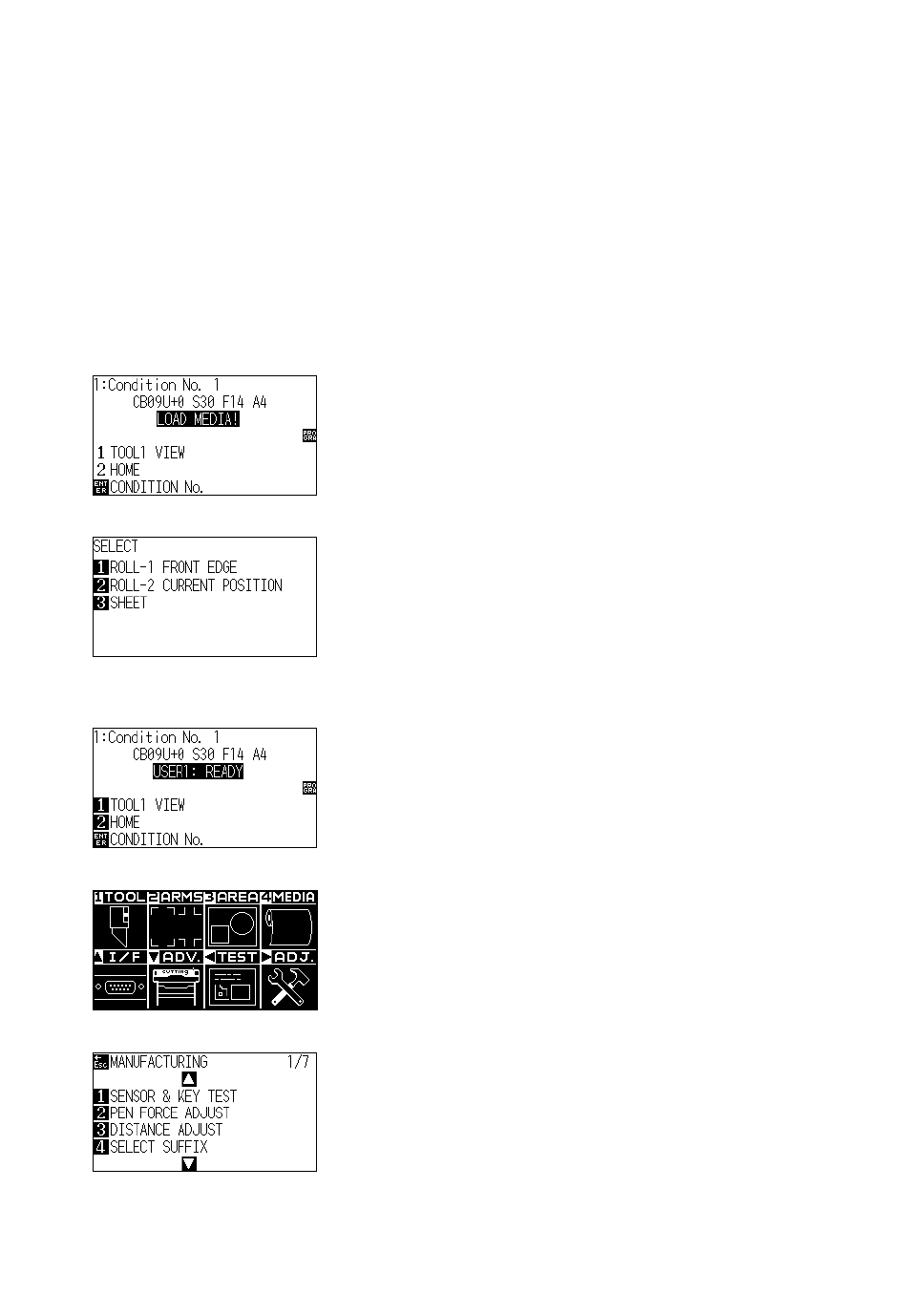

(3) The plotter displays the following menu.
(4) Load an A3 paper to the plotter, and then the plotter displays the following menu.
(5) Press the 3 key (SHEET) to display the menu shown below.
(6) The plotter displays the following menu.
(7) Press the PAUSE/MENU key to display the following menu.
(8) Press the Right Position key to display the adjustment menu shown below.
CE7000-UM-251-9370 8-26
