9 TROUBLESHOOTING
9.7.3

Printing the Test Pattern

Print a self-test pattern to check the operation of the plotter.
Operation
(1) Set a paper larger than A3 size.
(2) Set the pen tool to the tool carriage and select the condition where the pen tool is set.

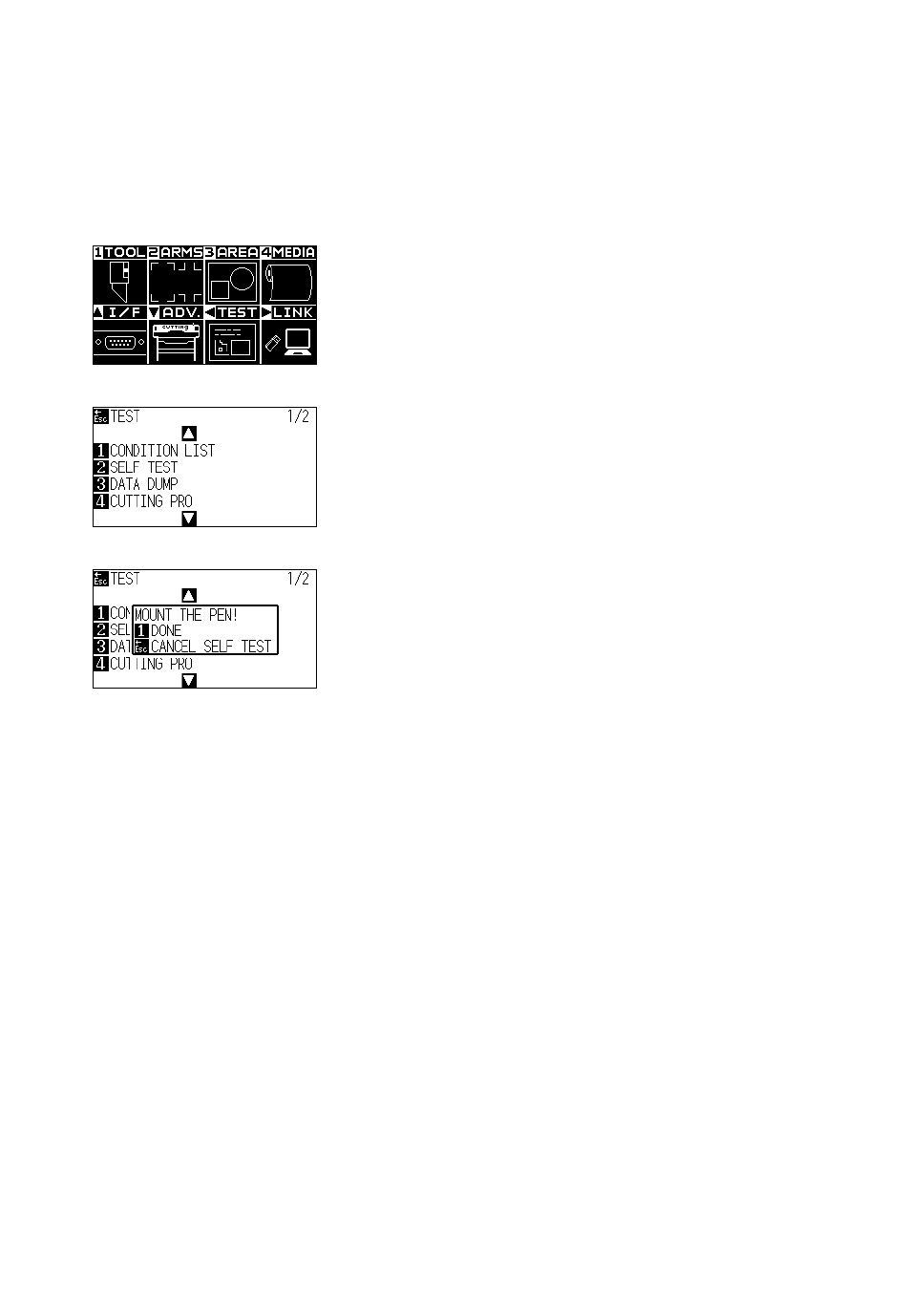

(3) Press the PAUSE/MENU key to display the menu below.
(4) Press the Left position (t) key (TEST) to display the menu below.
(5) Press the F2 key (SELF TEST) to display the menu below.
(6) Confirm that the pen tool is set.
(7) Press the F1 key (DONE) to print the test pattern.
(8) Turn the power off to stop the printing.
CE7000-UM-251-9370 34
