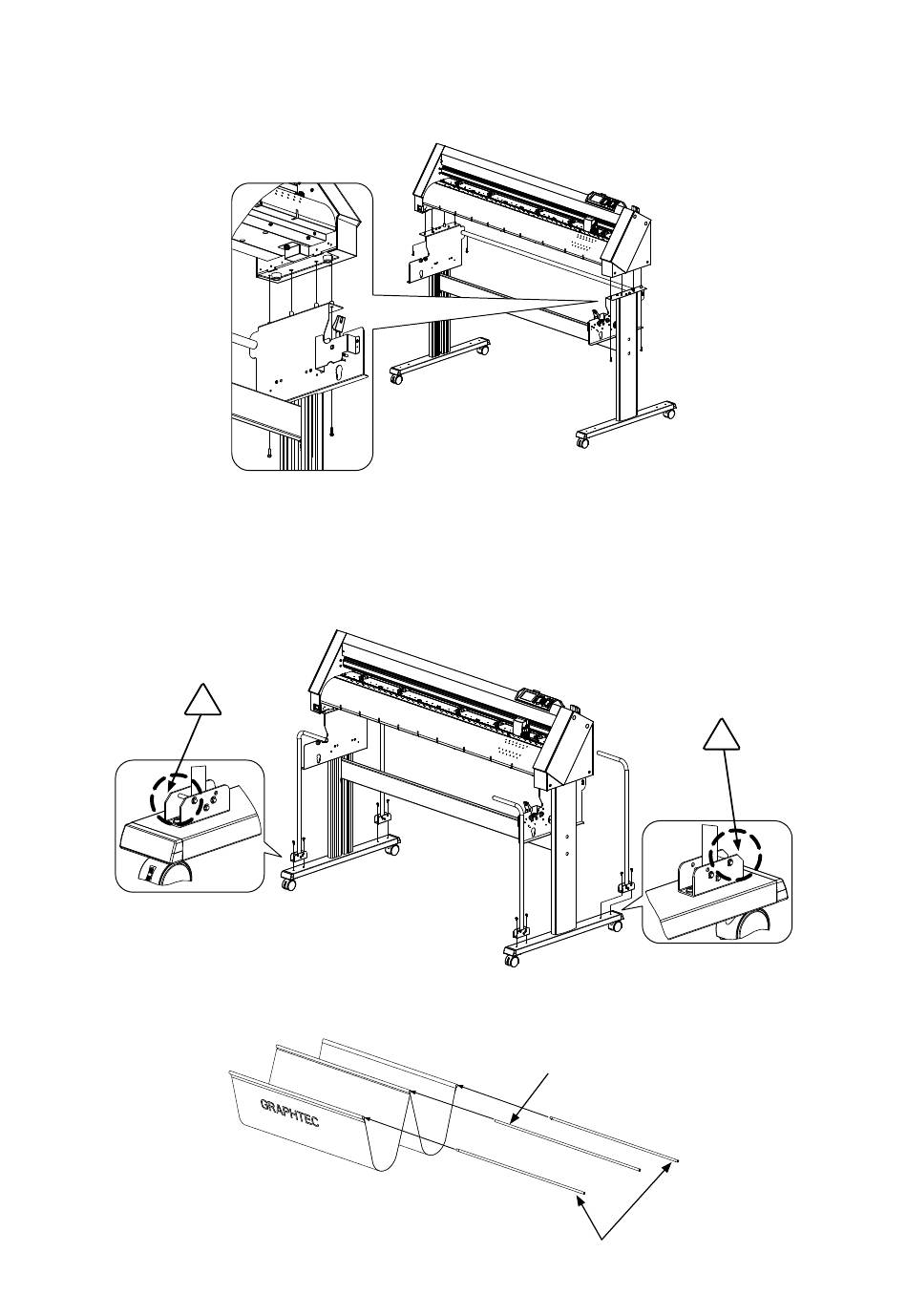

(4) Confirm the front side and the rear side for the stand by shape of stand. Mount the plotter on the stand
by inserting the positioning pins on the stand into the positioning holes on the underside of the plotter.
Fasten with the four M5L20 flange cap screws, using the Allen wrench.
(5) Attach the basket cloth arms to the foot of stand.
Confirm the direction of basket cloth arm as shown in the picture below, and then attach the basket cloth
arm to the foot of stand.
Fasten with the eight M5L10 flange cap screws (two screws for each basket cloth arm), using the Allen
wrench.
!
(6) Insert the basket tubes to the basket cloth as shown in the picture below.
Insert the long tube to the center of basket cloth, and insert the short tubes to the front and rear.
CE7000-UM-251-9370
Long tube
Short tube
2-11
2
Setup
!
