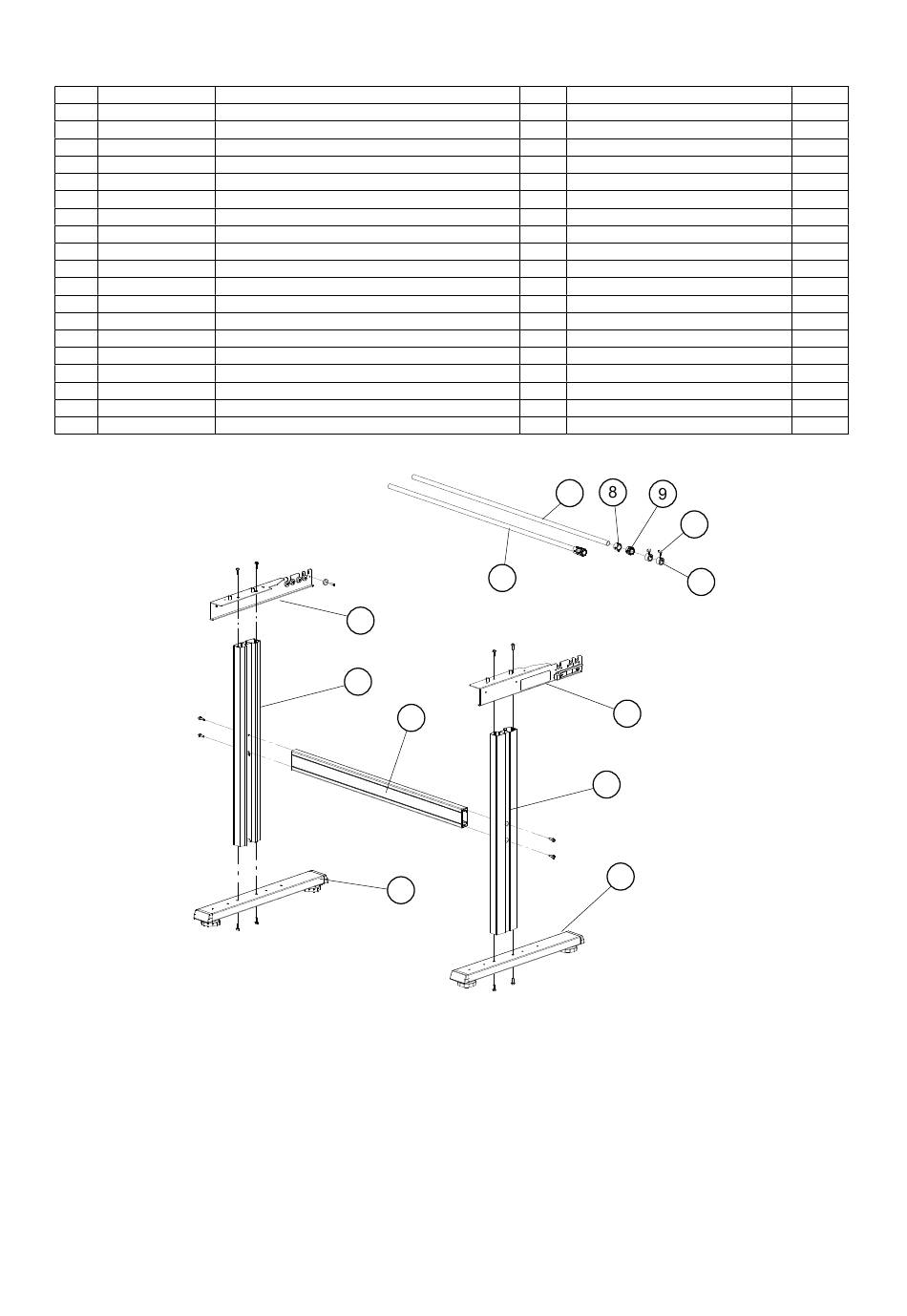

10.15 Stand for CE7000-60 (ST0118)

No. Part No.
1 U621851530 Foot Assembly, CE70-60
U621580272 Leveler CE6000
U621350142 End Cap, CE5K
Nut, M8
Bolt, M8L30
Self tapping screw
2 U621851523 Post, Stand CE7-60
3 U621851513 Center Bar, Stand CE7-60
4 U792700905 Right Stocker Bracket Assy
5 U792700910 Left Stocker Bracket Assy
Roller B, MR626ZZ
U621851610 BR Spacer, T1.6 D8 I4
Flat Head Screw, M4L12
6 U621851691 Stocker Shaft Assembly, CE7-60
7 U621851701 Stocker Shaft, CE7-60
8 U621851670 Collar, Stoker Shaft, CE7-60
9 U621851711 Stop Collar, Stoker Shaft, CE7-60
M4L5 Set Screw
10 U390914101 Yuria Screw, M4L10
Stand for CE7000-60 (ST0118)
CE7000-UM-251-9370
Description
5
2
3
1
10-16
Q'ty Remarks
2 CE7000-60
(4)
(4)
(4)
(4)
(8)
2
1
1
1
(10)
(10)
(10)
2
(2)
(4)
(2)
(8)
(2)
7
6
4
2
1
10 PARTS LIST
Rank
C
C
C
D
D
D
C
C
C
C
D
D
D
C
C
C
C
C
C
10
8
