2.2.3

Assembling the stand for CE7000-130AP

Procedure

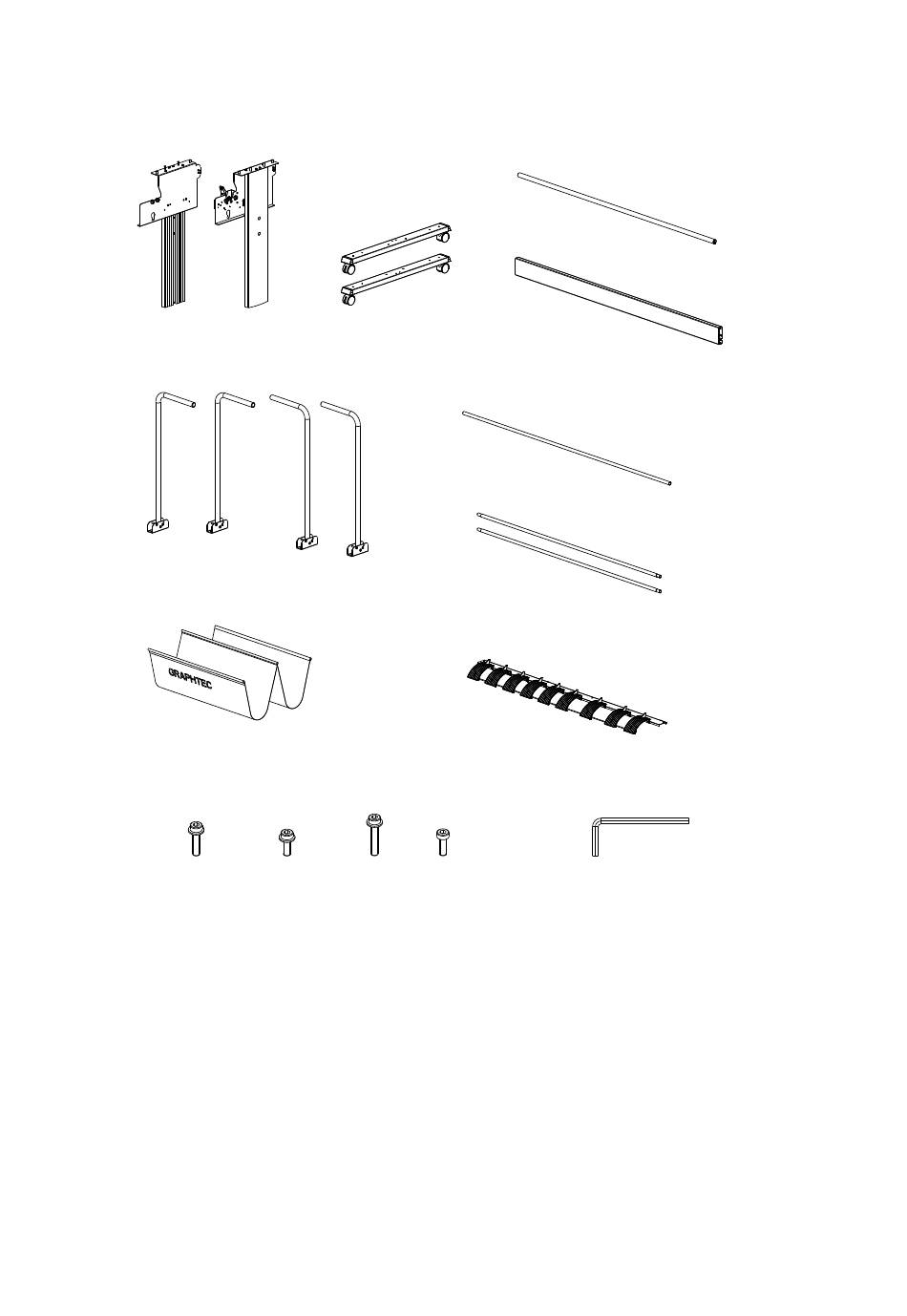

(1) Take out the following part of stand from the packing box.
Stand side assembly
L and R
Basket Cloth Arm x 4
Basket Cloth x 1
M5L16
Flange Cap
screw x 16
CE7000-UM-251-9370
Foot x 2
M5L10
M5L20
Flange Cap
Flange Cap
screw x 8
screw x 4
Guide shaft
Center bar x 1
Basket tube long x 1
Basket tube short x 2
Media Guide Assembly
Allen wrench (for M5 cap screw)
M5L10
Cap screw
x 3
2-9
2
Setup
