GRAPHTEC CE7000-40 Service Manual page 31

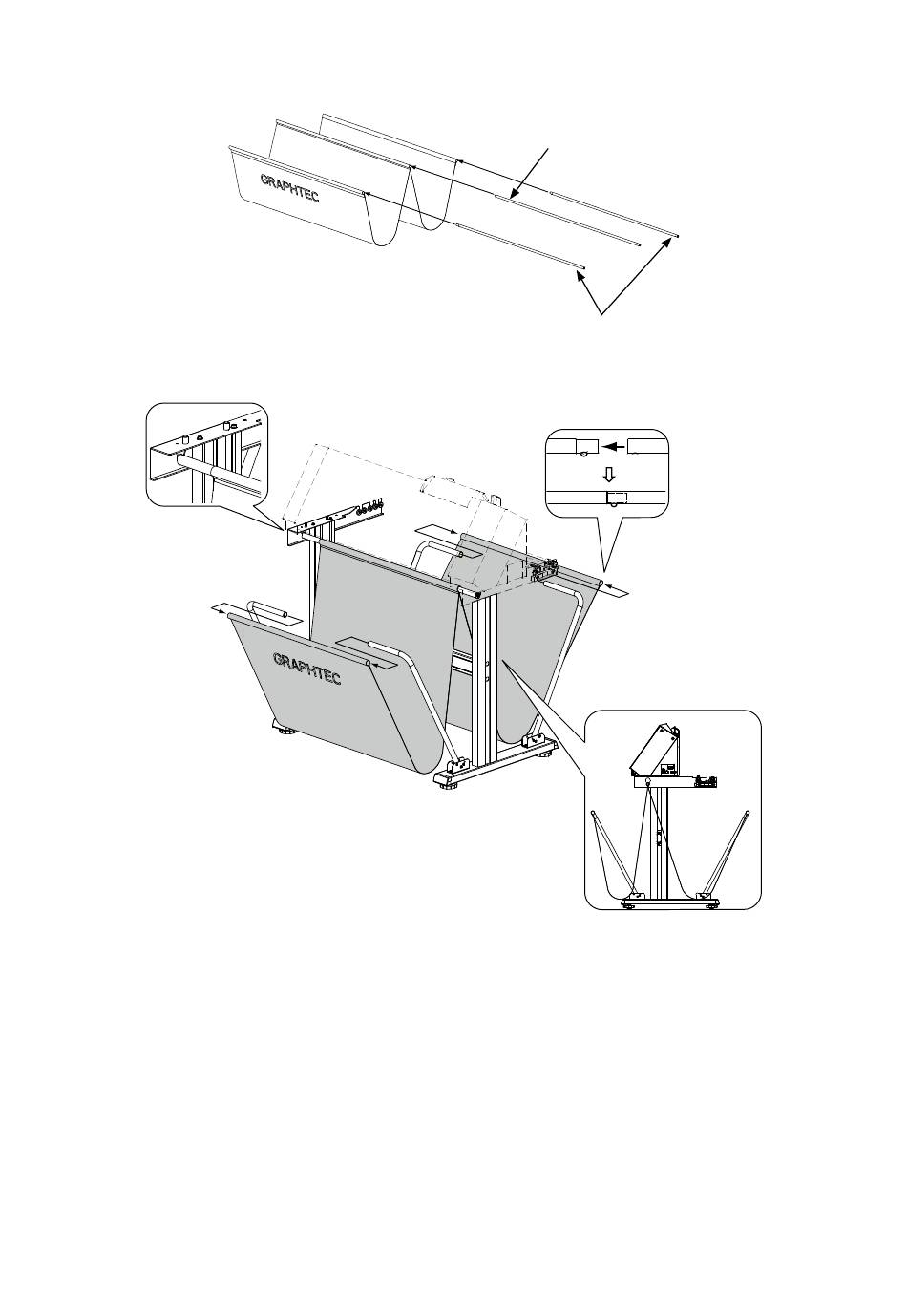

(3) Insert the basket tubes to the basket cloth as shown in the picture below.
Insert the long tube to the center of basket cloth, and insert the short tubes to the front and rear.
(4) Put on the center basket tube onto the basket tube hanger brackets, and then connect the front and
rear basket tube to the basket cloth arm as shown in the picture below.
CE7000-UM-251-9370
Long tube
Short tube
2-14
2 Setup
