(11) Confirm the position of set-lever is the unloaded position.
(12) Pull the cam shaft to the right side (left side from the rear view.), until the left side of cam shaft is
reached to the notch of Y rail.
(13) Slide the push roller assembly to the notch of Y rail, and then detach the push roller assembly from the
Y rail.
How to reinstall the Push Roller Assembly
(1) Reattach the push roller assembly in the reverse order in which it was detached.
(2) When the cam shaft is inserting to the cam, confirm the direction of cam that push-roller is possible to
lift up or down by the set-lever.
(3) Slide the stopper of push roller assembly to a mark, and then tighten the screw for the stopper.
(4) Reattach the other parts in the reverse order in which they were detached.
CE7000-UM-251-9370

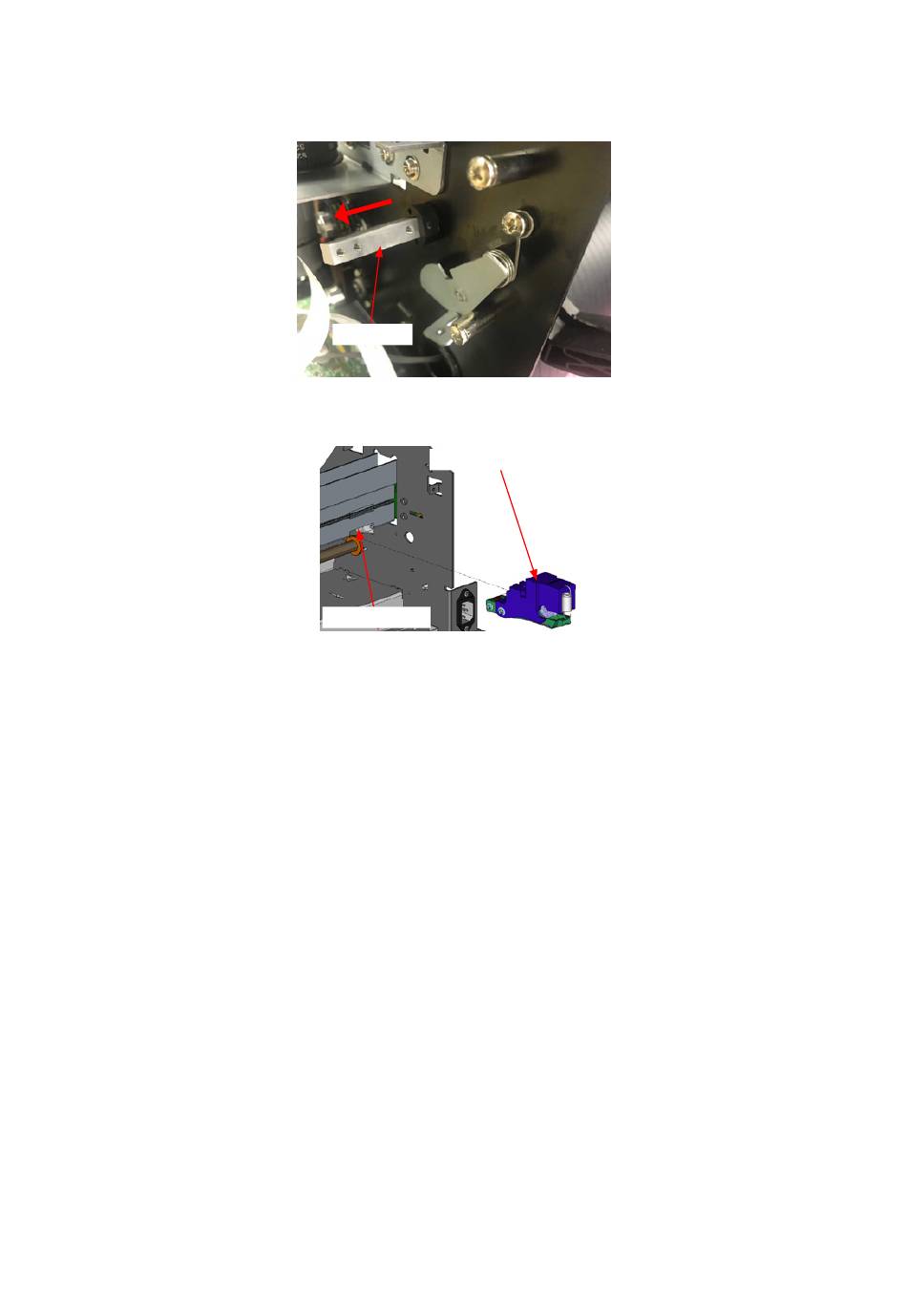

Cam shaft
Push roller assembly
Notch of Y rail
7-51
7
DISASSEMBLY AND REASSEMBLY
