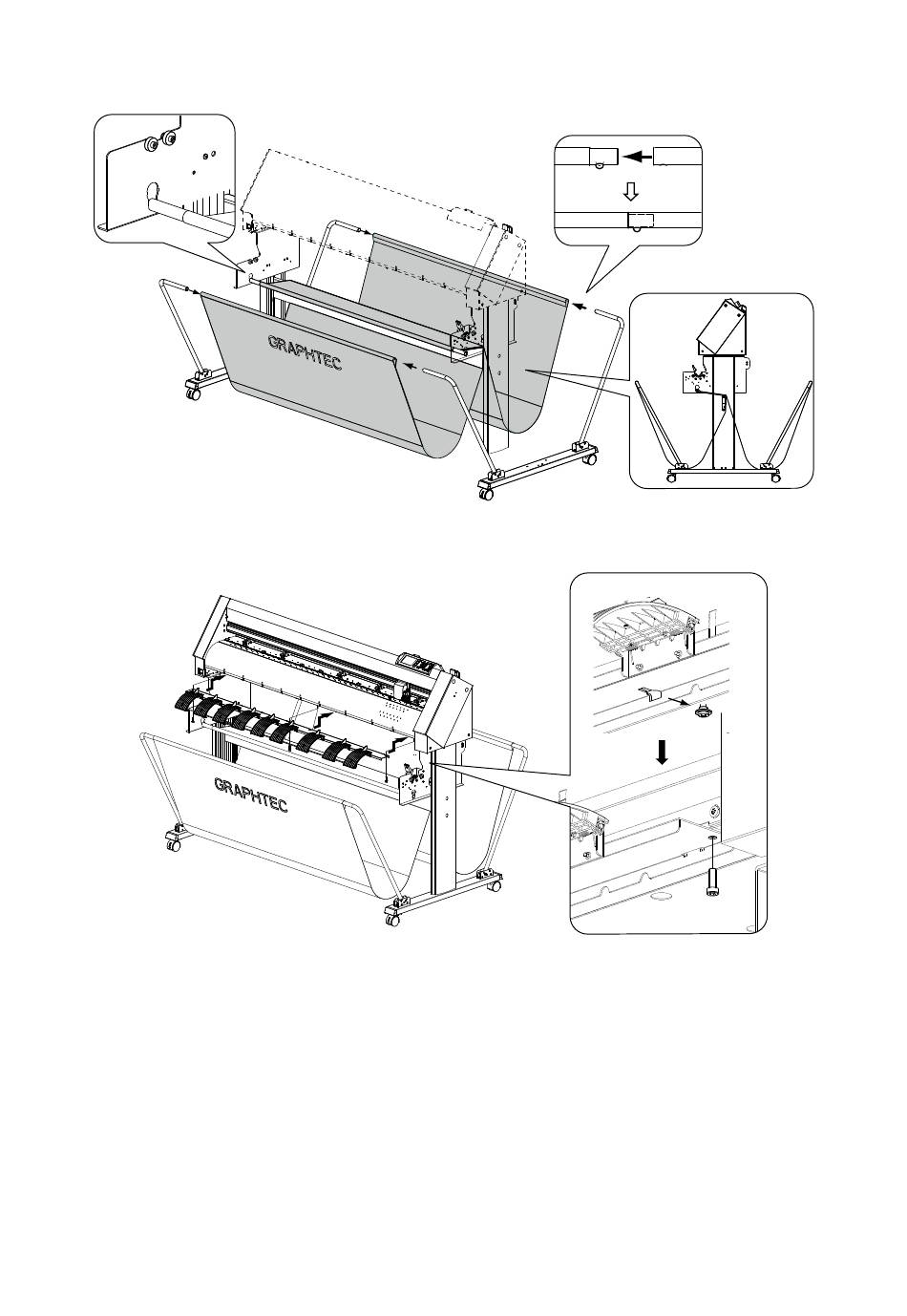

(7) Put on the center basket tube onto the basket tube hanger brackets, and then connect the front and
rear basket tube to the basket cloth arm as shown in the picture below.
(8) Attach the media guide to front of CE7000-130AP.
Fasten the media guide with the three M5L10 cap screws as shown in the picture below.
CE7000-UM-251-9370
2-12
2
Setup
