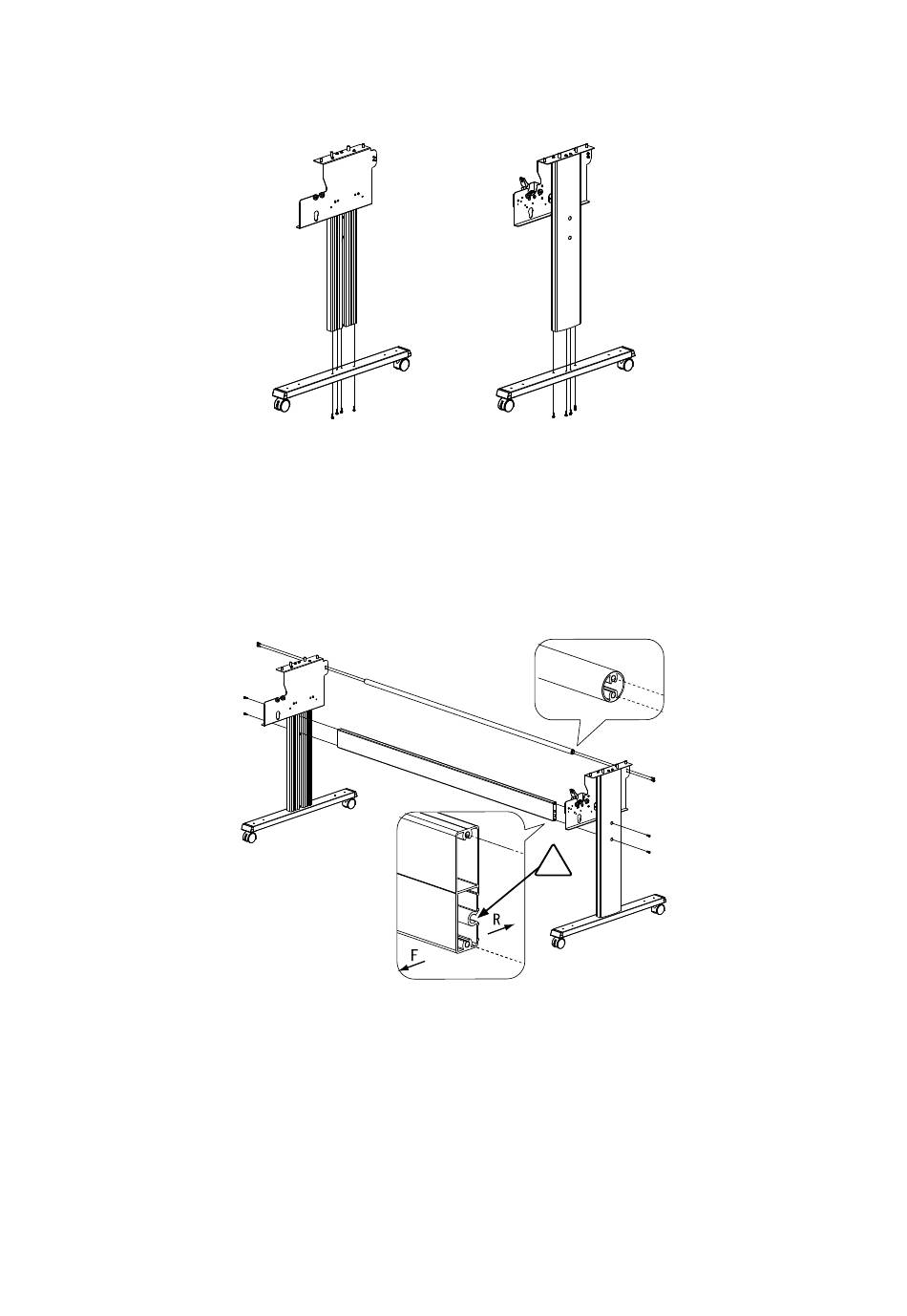

(2) Assemble the left and right stand side assembles and the feet. Insert the eight (four on each side)
M5L16 flange cap screws to the thread of the stand side bar by hand, and then tighten them by hand.
Then fasten eight (four on each side) M5L16 flange cap screws by using the Allen wrench.
(3) Assemble the center bar and the guide shaft to the stand side stand.
When the center bar is assembled to the side stand, confirm the front side and the rear side for the
stand by shape of center bar.
Insert the four flange M5L16 cap screws to the thread of the center bar by hand (two on each side), and
then tighten them by hand. Then fasten four M5L16 flange cap screws by using the Allen wrench.
Insert the four flange M5L16 cap screws to the thread of the guide shaft by hand (two on each side),
and then tighten them by hand. Then fasten four M5L16 flange cap screws by using the Allen wrench.
CE7000-UM-251-9370
!
2-10
2
Setup
