7.2.12 Replacing the X-motor

CE7000-40/60
How to detach the X-motor
(1) Detach the right side cover (Refer to subsection 7.1.1.).
(2) Detach the Front guide (Refer to subsection 7.1.5.).
(3) Disconnect the Control Panel Flexible cable form the main board.
(4) Remove the M3L6 binding head screw holding the Y-motor cover, and then detach the Y-motor cover.
Y Motor Cover

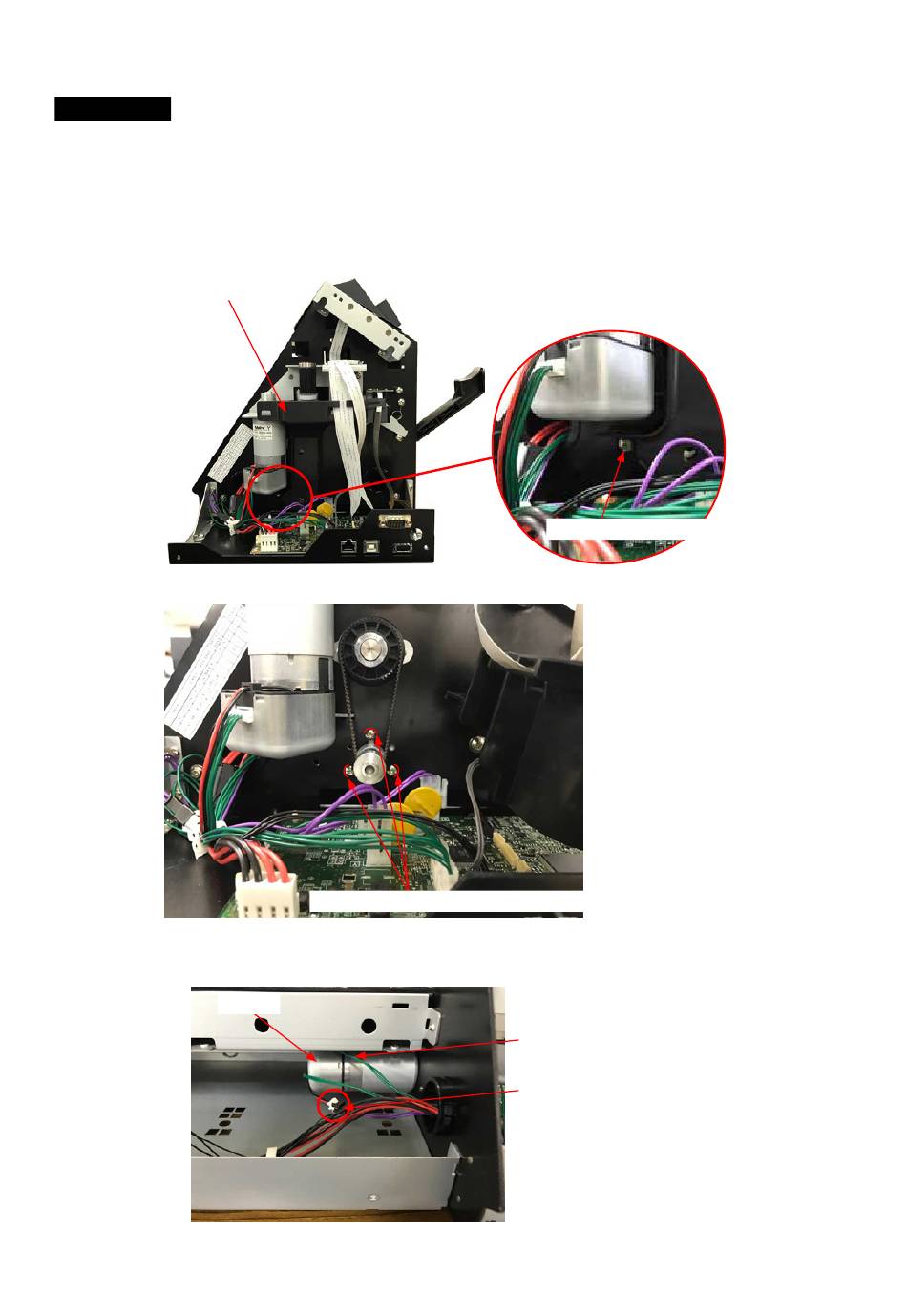

(5) Mark the position of screws which are holding the X motor as shown in the picture below.
(6) Remove the three M3L6 binding head screws holding the X-motor.
(7) Detach the X motor from the front of CE7000-40/60.
X motor
CE7000-UM-251-9370
Mark the position of screws which are holding the X motor.
7-31
7 DISASSEMBLY AND REASSEMBLY
M3L6 binding head screw
X motor encoder cable
X motor power relay cable
