DISASSEMBLY AND REASSEMBLY
7.3.2
Y-Drive Belt Tension Adjustment
How to adjust the Y-Drive belt tension

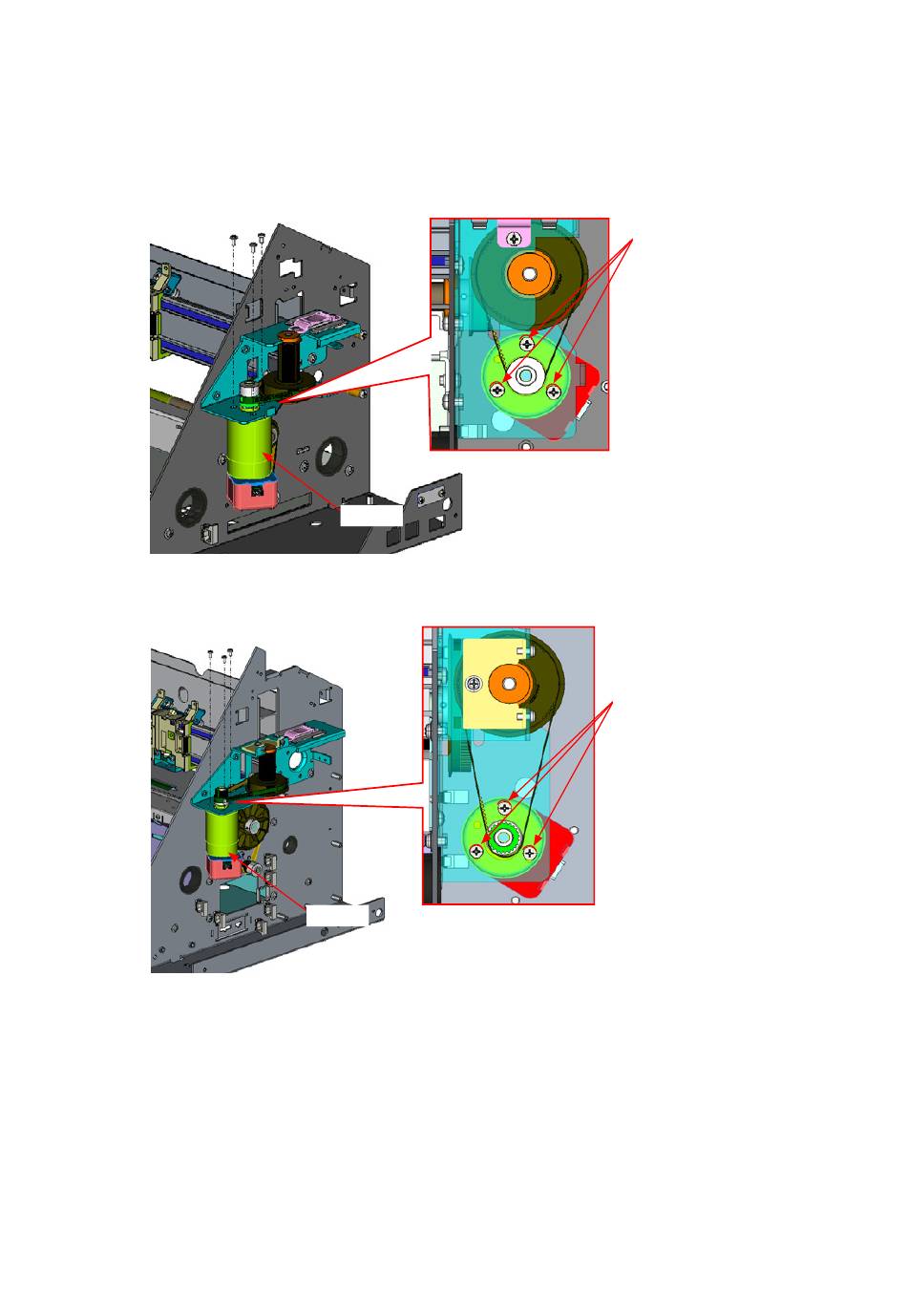

(1) Tighten the three screws attaching the Y motor at the marking position, which was marked when
detaching the Y motor.
CE7000-40/60
Marking position
Y Motor
CE7000-130/130AP/160
Marking position
Y Motor
CE7000-UM-251-9370
7-60
