a. Unlatch the upper CMA at the elbow connector by pressing the blue release button to
unlatch the connector from the rail.

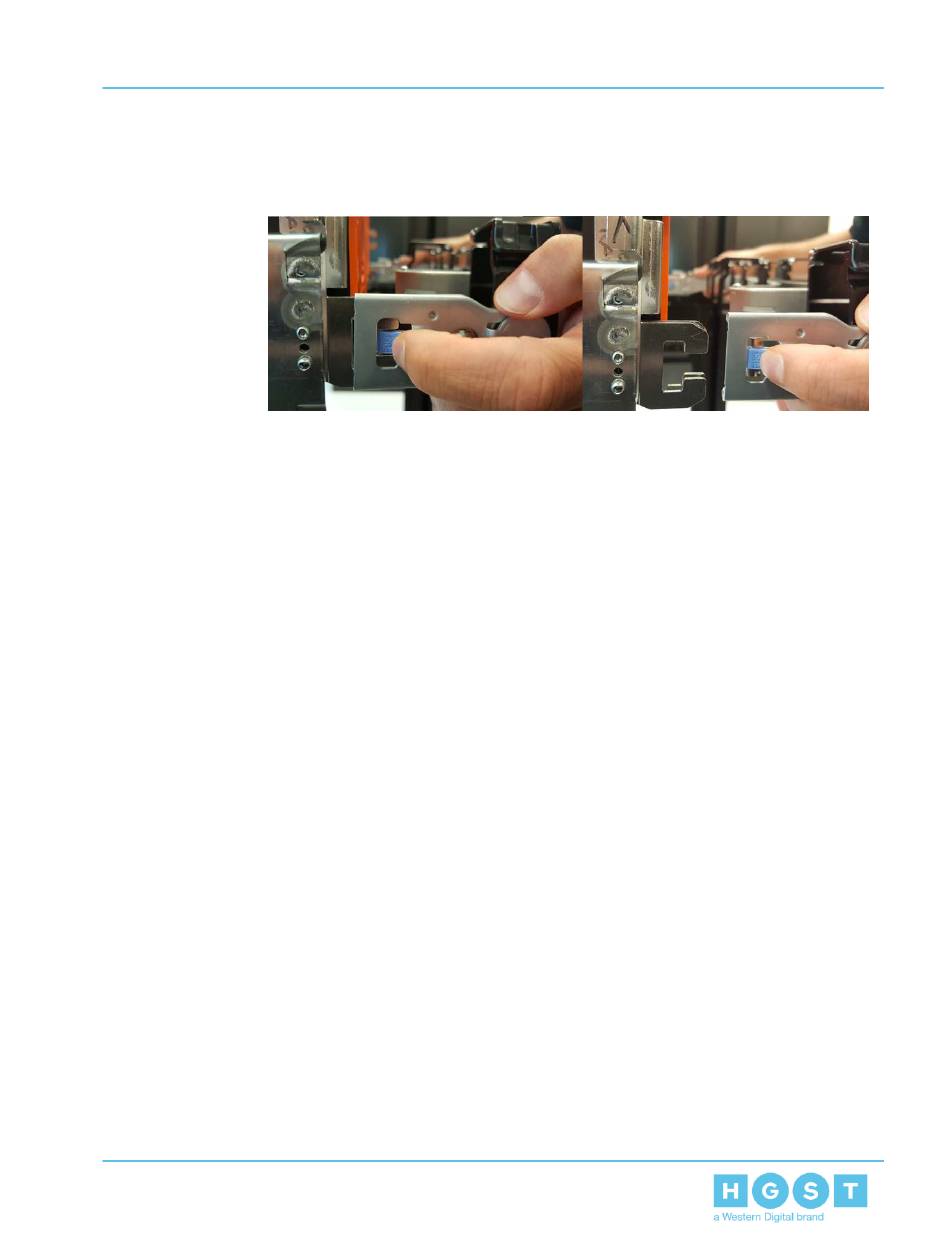

Figure 61: Unlatching a CMA Connector
b. Swing the CMA away from the enclosure.
c. Do the same for the lower CMA arm as what was done for the upper.
d. Both arms should be extended away from the enclosure as shown in the following
example.
4.7 CMA Standard Replacement
84
4. Part Replacement
