5. System Management
5.5 Daisy Chaining
User Guide

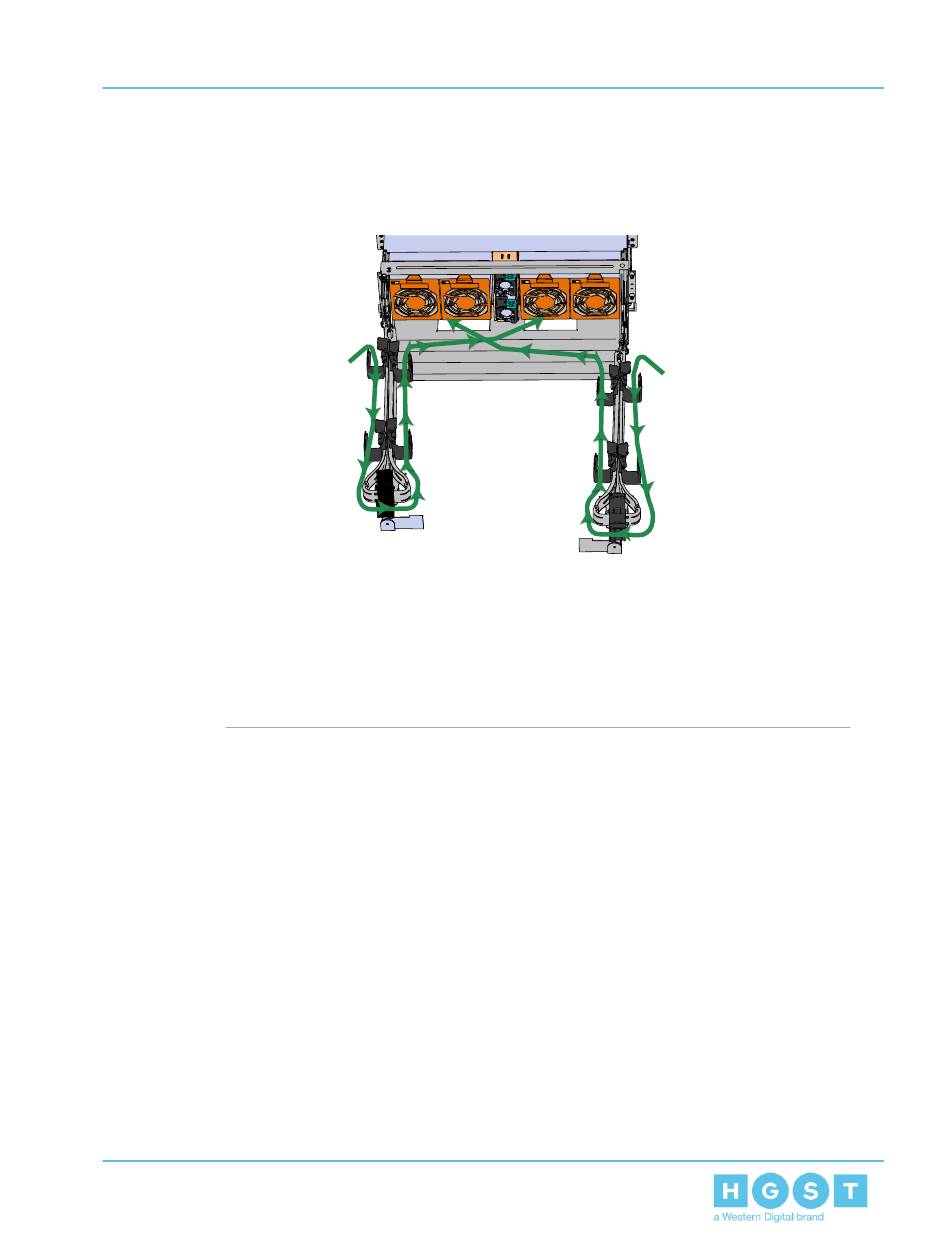

Figure 222: Connected Cable Routing
c. Wrap cable tie around the installed cable bundle between the ports and the first basket
of the CMA
Note: Each cable must be given enough slack at the connector end to
operate smoothly. For the upper CMA allow 20" - 21" (508 – 533.4mm)
between the end of the connector and the first basket. Make sure to route all
of the upper CMA cables under the lower CMA cables.
279
