4. Part Replacement
4.9 Rails Replacement
User Guide

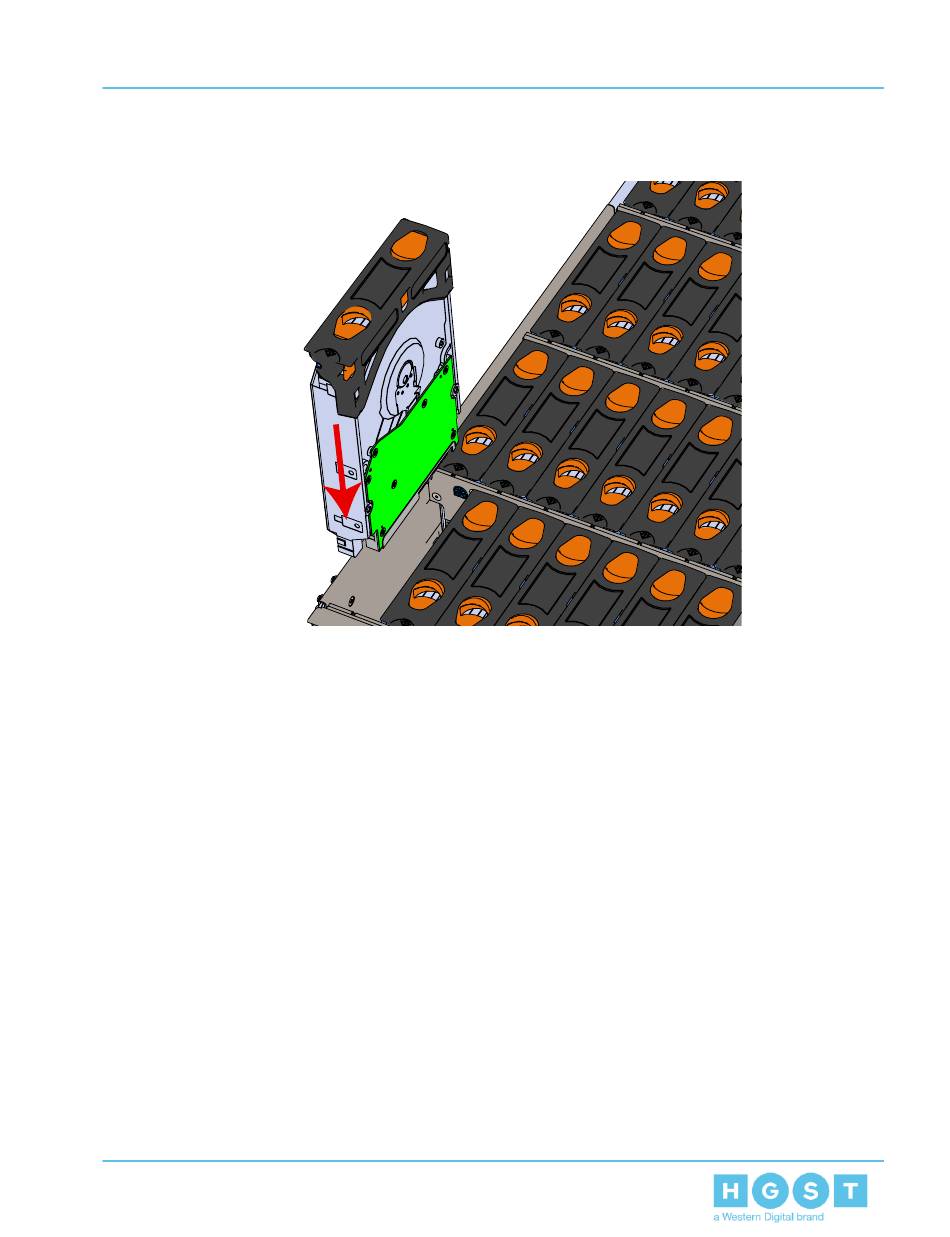

Figure 122: Installing a Drive Assembly
d. Pinch the latch release and carefully press downward to seat the Drive Assembly the
rest of the way.
28. Install each drive in the place it was removed from by following the labels or marks that were
added earlier.
29. Install the upper CMA.
a. Orient the CMA so that the elbow is on the right hand side as it is being installed.
141
