4. Part Replacement
4.4 Rear Fan Replacement
User Guide

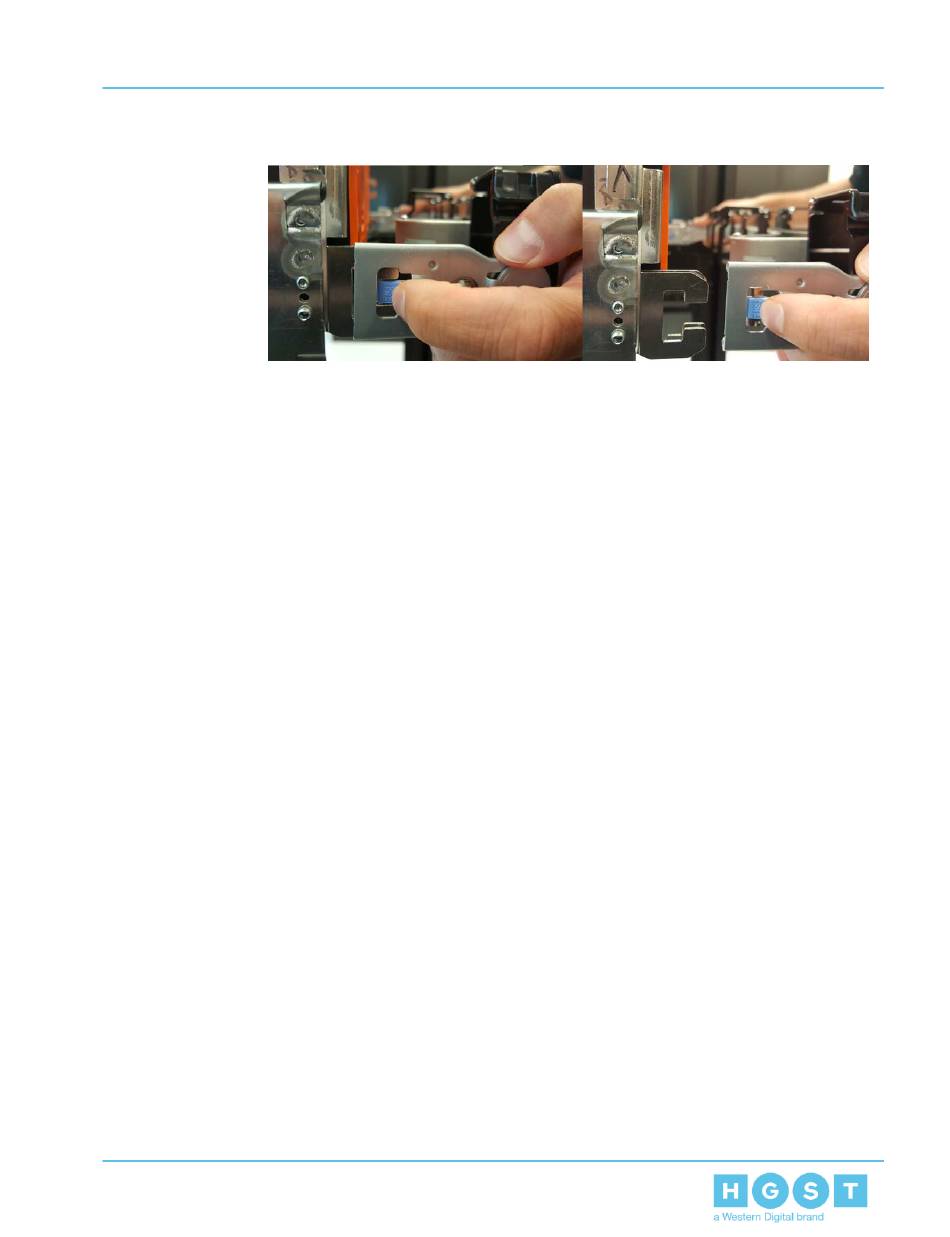

Figure 48: Unlatching a CMA Connector
b. Swing the CMA away from the enclosure.
c. Do the same for the lower CMA arm as what was done for the upper.
d. Both arms should be extended away from the enclosure as shown in the following
example.
71
