User Guide

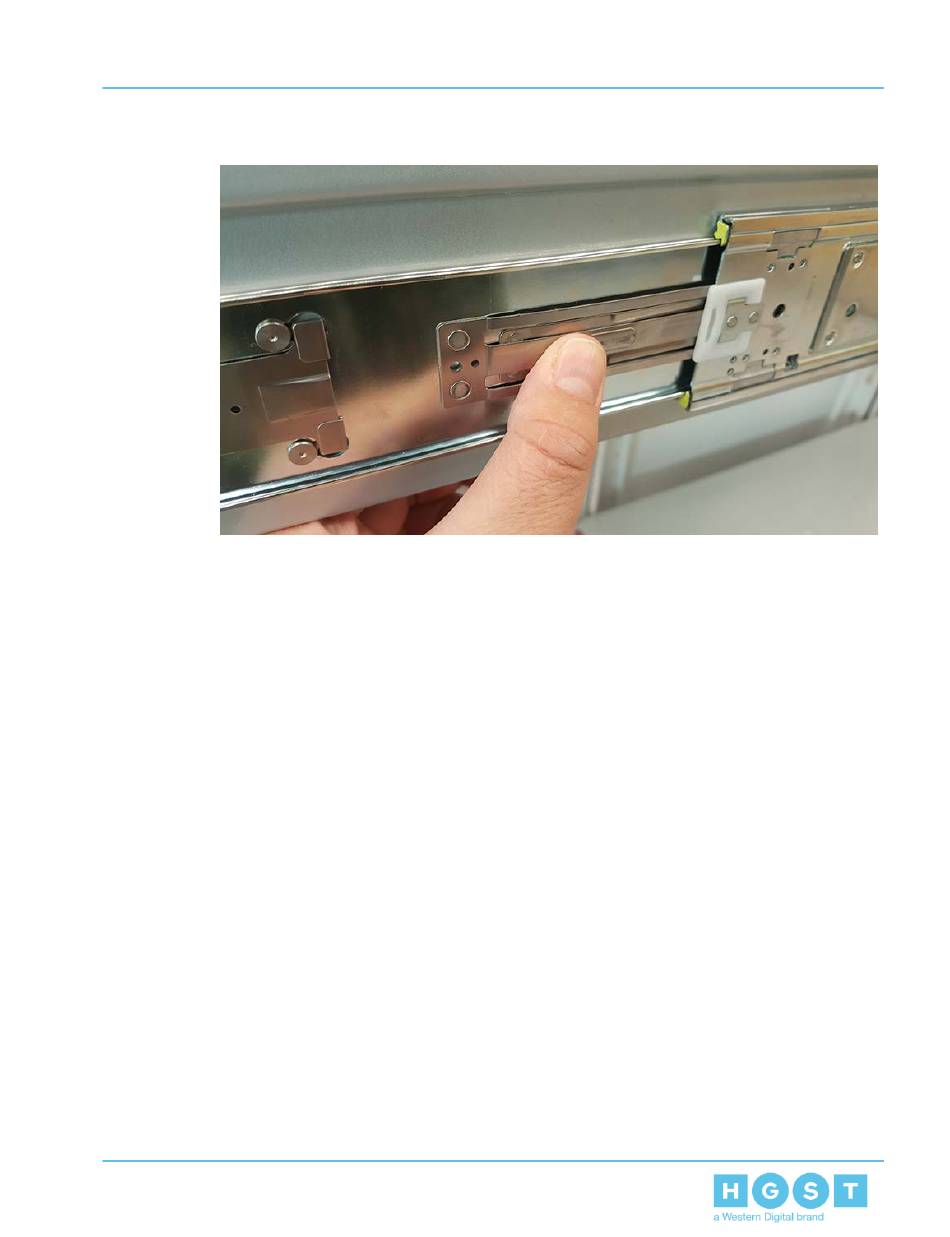

Figure 98: Inner Rail Safety Latch Release
12. Push the chassis back into the rack.
13. Locate the M5 x 12mm Philips Pan Head screws on the top cover of the enclosure that keep it
in place when the drawer is extended and unscrew them using a #2 Philips head screwdriver.
This will allow the top cover to move freely with the enclosure when the enclosure is removed.
120
4. Part Replacement
4.9 Rails Replacement
