User Guide
Table 36: Procedure Info
Required Tools
• Long T15 Torx Screwdriver
• # 2 Philips Screwdriver
• T30 Torx Screwdriver
• Long T10 Torx Screwdriver
• Cable Ties (for configurations
with greater than 10 total
cables)
• Tape Measure
• Level
1. Place both CMAs into service position.
a. Unlatch the upper CMA at the elbow connector by pressing the blue release button to
unlatch the connector from the rail.

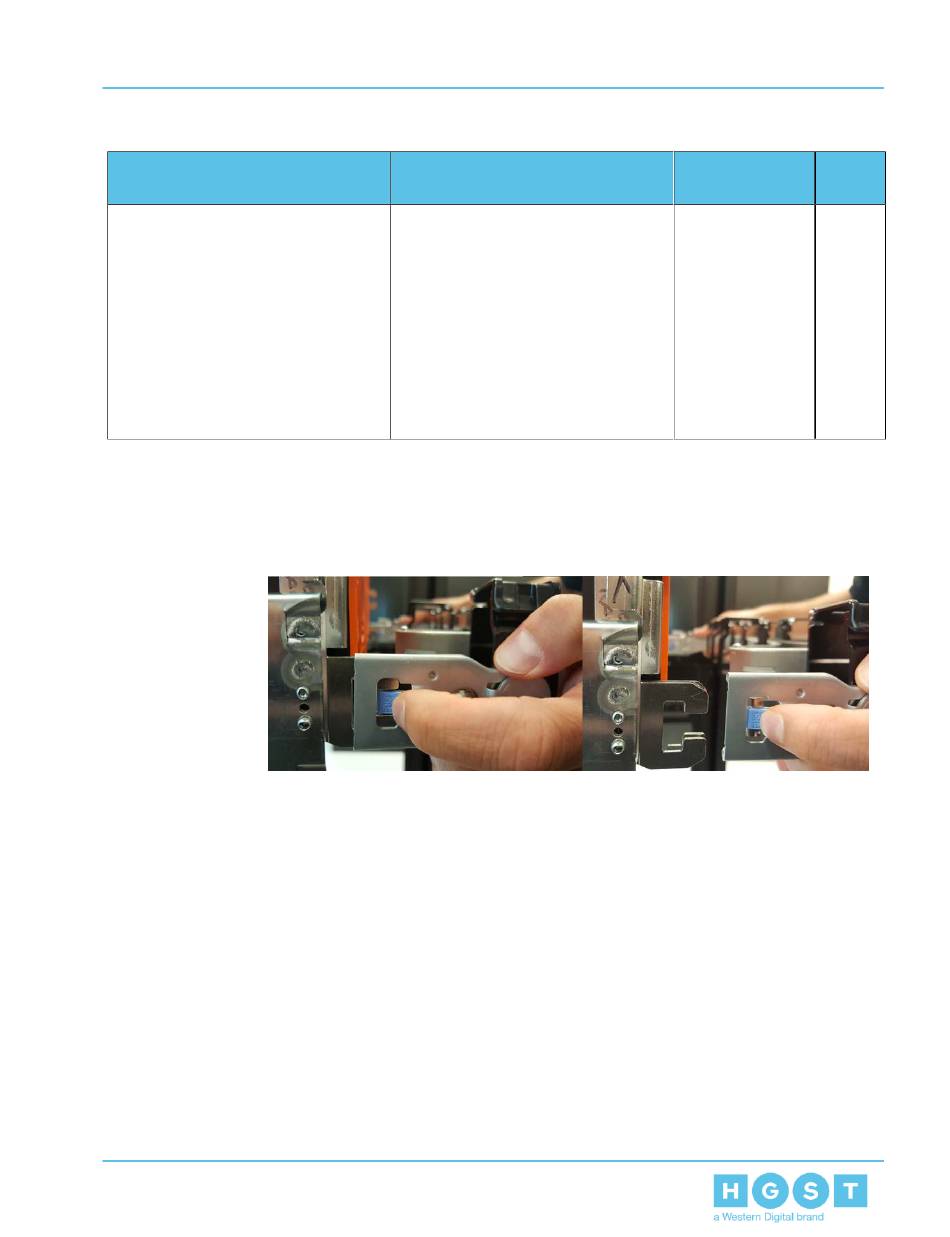

Figure 132: Unlatching a CMA Connector
b. Swing the CMA away from the enclosure.
c. Do the same for the lower CMA arm as what was done for the upper.
d. Both arms should be extended away from the enclosure as shown in the following
example.
Required Parts
• M5 x 12mm T15 Flat Head
Torx screws
• Included Washers
• Low-Profile M4 x 3.2mm
Philips screws (included with
rail assembly)
• Optional (if using CMA
Tray): M3 x 8mm T10 Torx
screws
151
4. Part Replacement
4.10 Chassis Replacement
# of People Time
Required Required
3 ~2h
