Figure 119: Cover Retention Screws
Note: If any drives were removed earlier to facilitate the removal of the chassis, follow the rest
of the steps to reinstall the drives by following the labeling scheme noted earlier. If not, proceed
to the cabling section.
26. If the chassis is being installed into a rack that will be shipped fully assembled, you must
install eight (four per side) of the included M5 x 12mm T15 Flat Head Torx screws into the two
brackets at the front of the chassis in the following locations. These screws should be tightened
to 3.38-3.61 Nm / 30-32 in-lbf using a Long T15 Torx Screwdriver. If this chassis will not be
installed into a rack for shipping purposes, skip this step and move on to the next one.

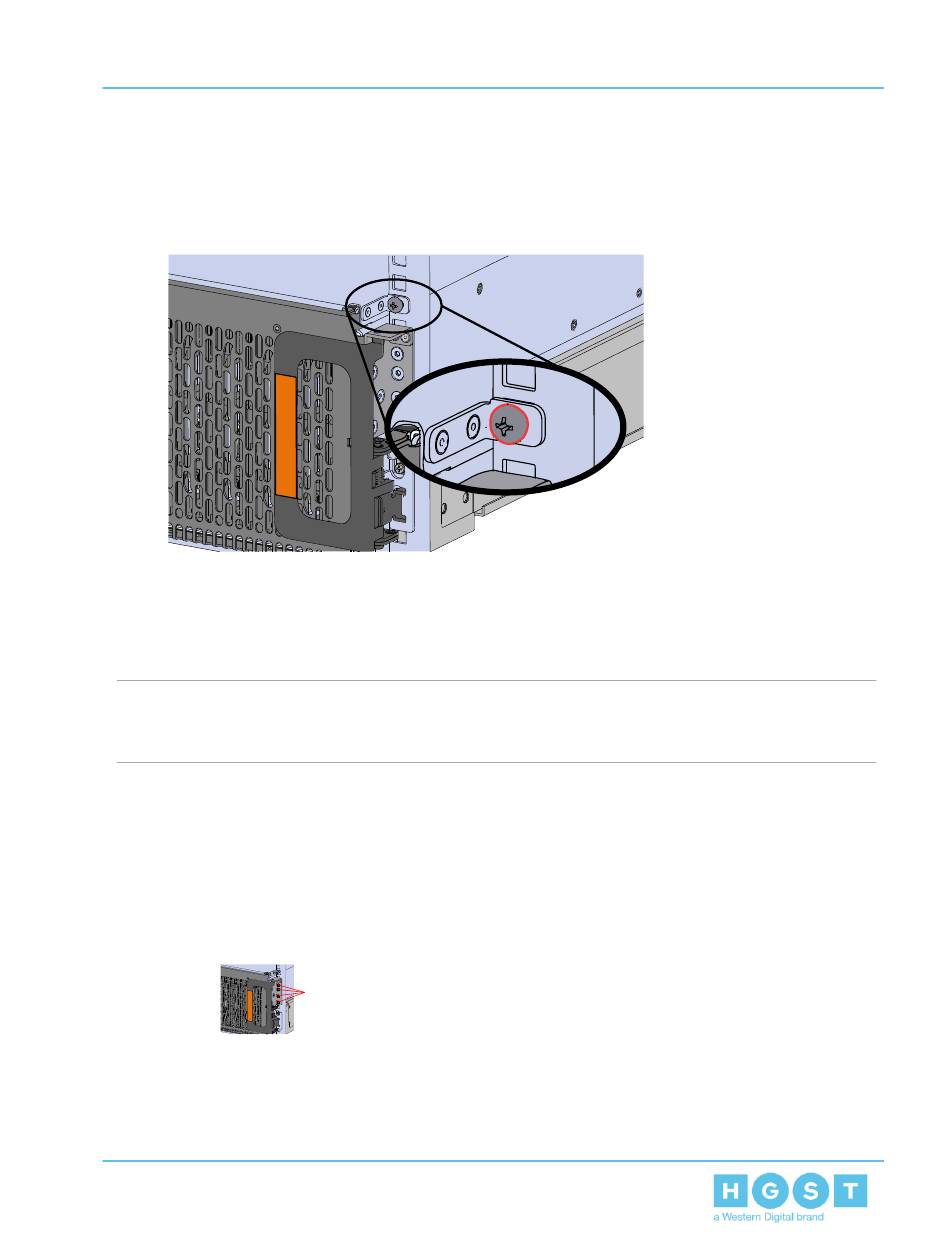

Figure 120: Shipping Bracket Screw Locations
27. Install the Drive Assembly.
Screw Location
139
4. Part Replacement
4.9 Rails Replacement
