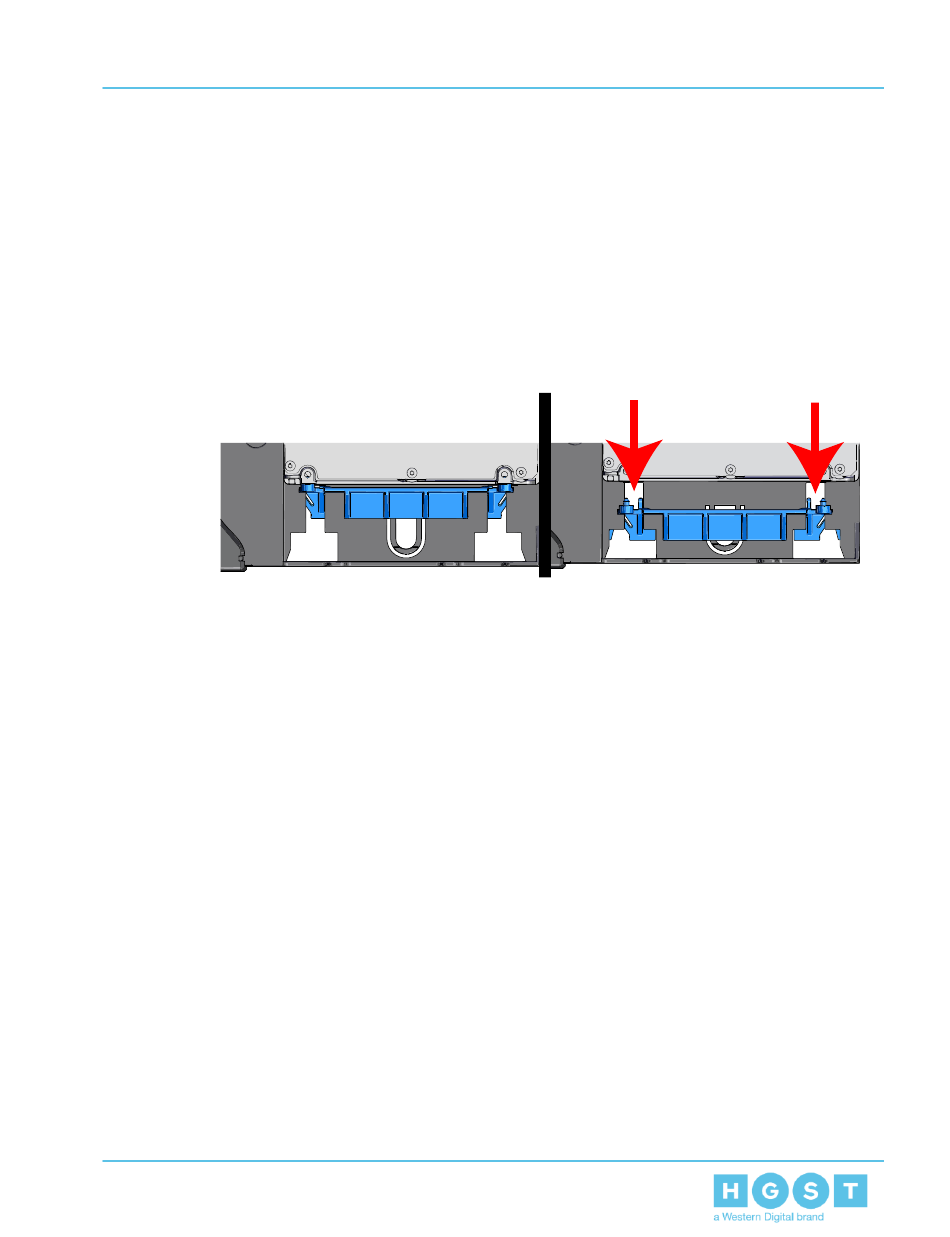

Figure 33: Clamp Slide (clamp shown in blue for visual clarity)
3. Insert the 2.5" drive into the drive slot so that it is snug into the corner.
4. Slide the clamp back toward the drive making sure that the two plastic pins on the side of the
drive properly install into the drive screwholes. If these pins are not seated properly, unlatch
the clamp and retry.
55
3. Component Overviews
3.8 Drive Assembly Description
