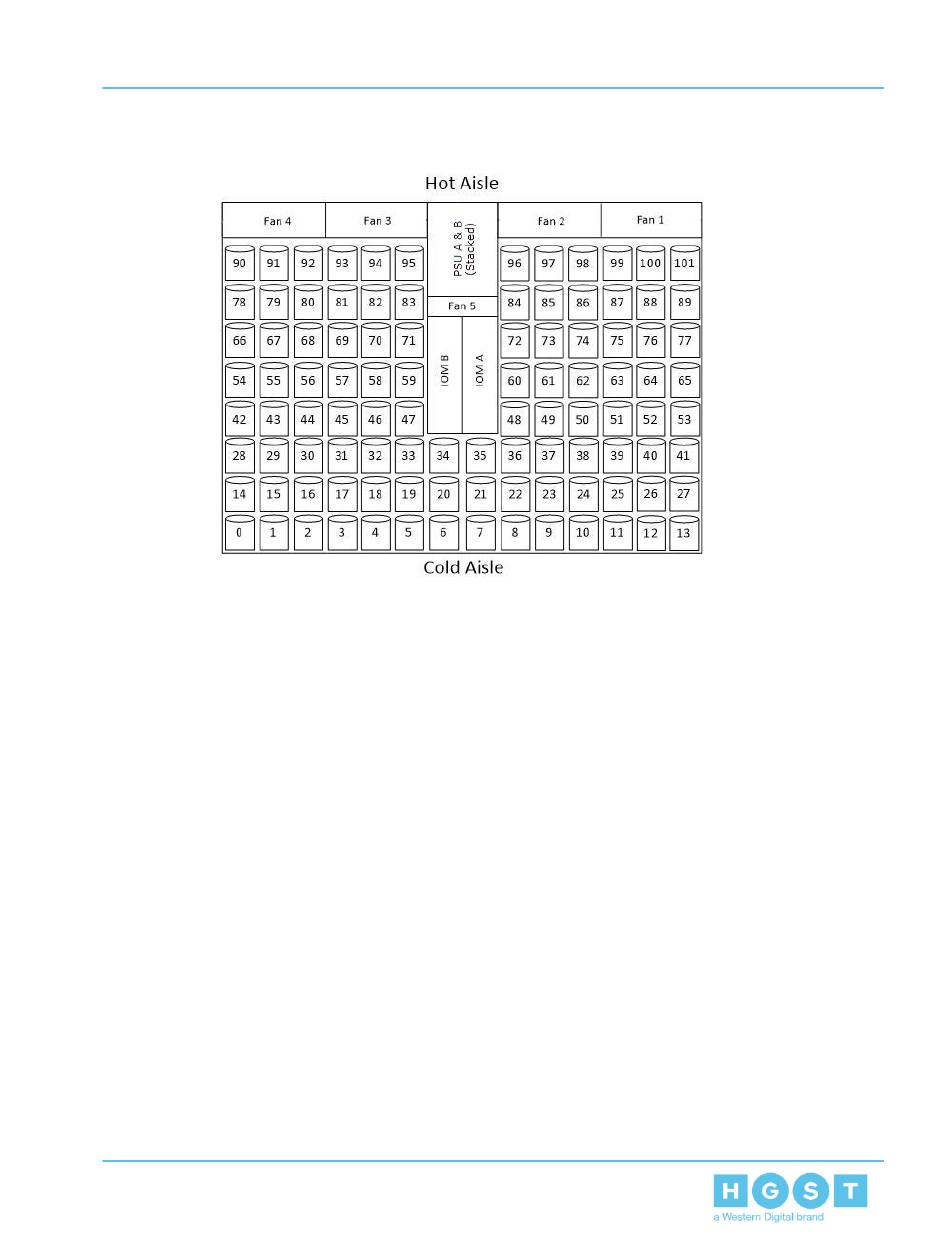

Figure 88: Drive Layout
17. Now that the drives are installed into the chassis, test the installation by sliding the enclosure in
and out of the rack a minimum of three times. If the enclosure binds, catches, or displays any
incorrect motion or behavior retry the installation of the drives and chassis.
18. If the chassis is being installed into a rack that will be shipped fully assembled, you must
install eight (four per side) of the included M5 x 12mm T15 Flat Head Torx screws into the two
brackets at the front of the chassis in the following locations. These screws should be tightened
to 3.38-3.61 Nm / 30-32 in-lbf using a Long T15 Torx Screwdriver. If this chassis will not be
installed into a rack for shipping purposes, skip this step and move on to the next one.
110
4. Part Replacement
4.8 CMA Lite Replacement
