1. Grasp both handles at the front of the enclosure and pull with even pressure to extend the
chassis out of the rack until it is stopped by the safety latches. The safety latches will prevent
the enclosure from coming out of the rack completely and the cover will remain in the rack
attached to the rear alignment brackets.

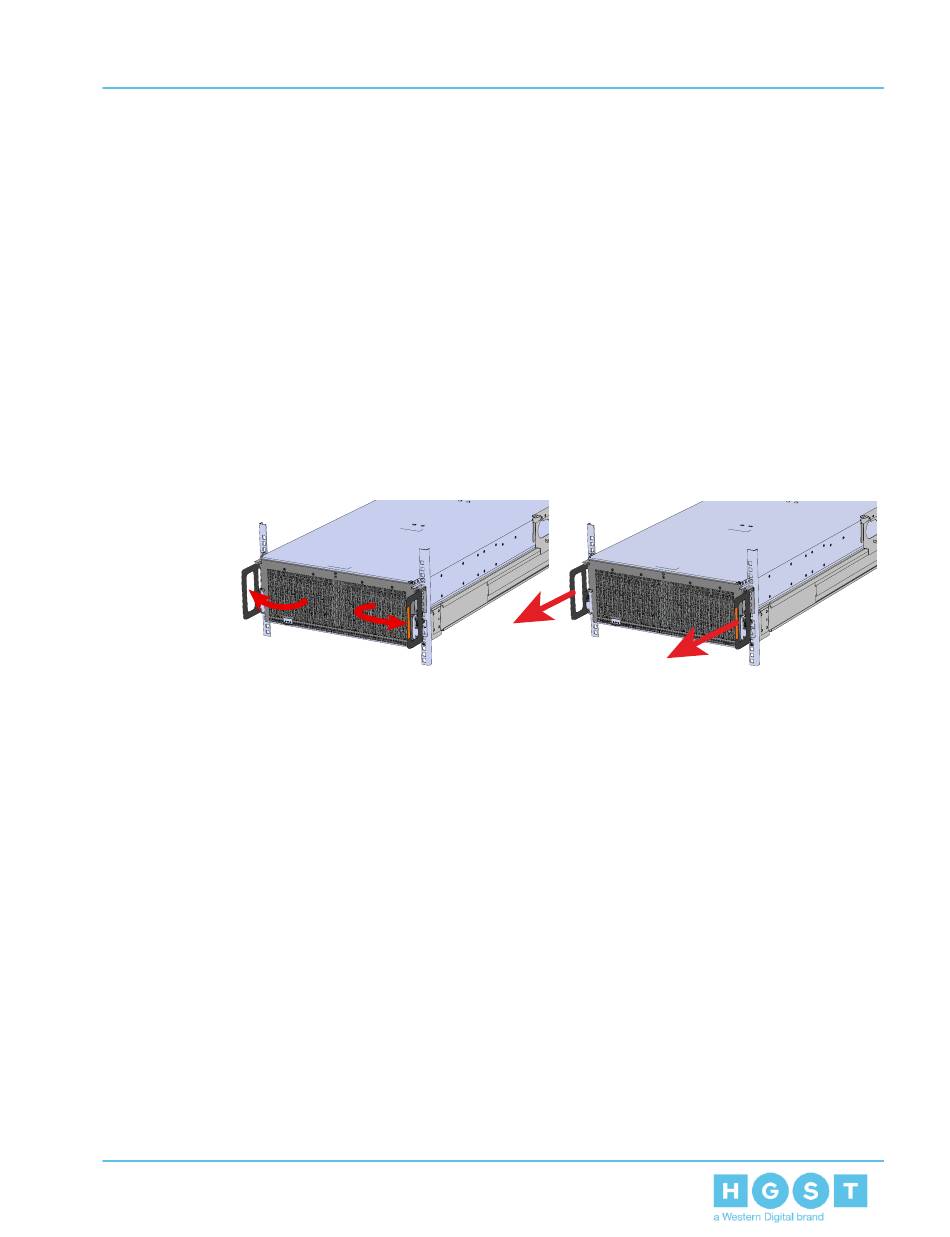

Figure 52: Chassis Handle Operation
2. Remove the IOM Fan.
a. With one hand, grasp around the center square of the fan housing as shown in the
following image.
b. Pinch the IOM fan housing to release the latching mechanism and pull it straight out
from the chassis.
