4. Part Replacement
4.10 Chassis Replacement
User Guide

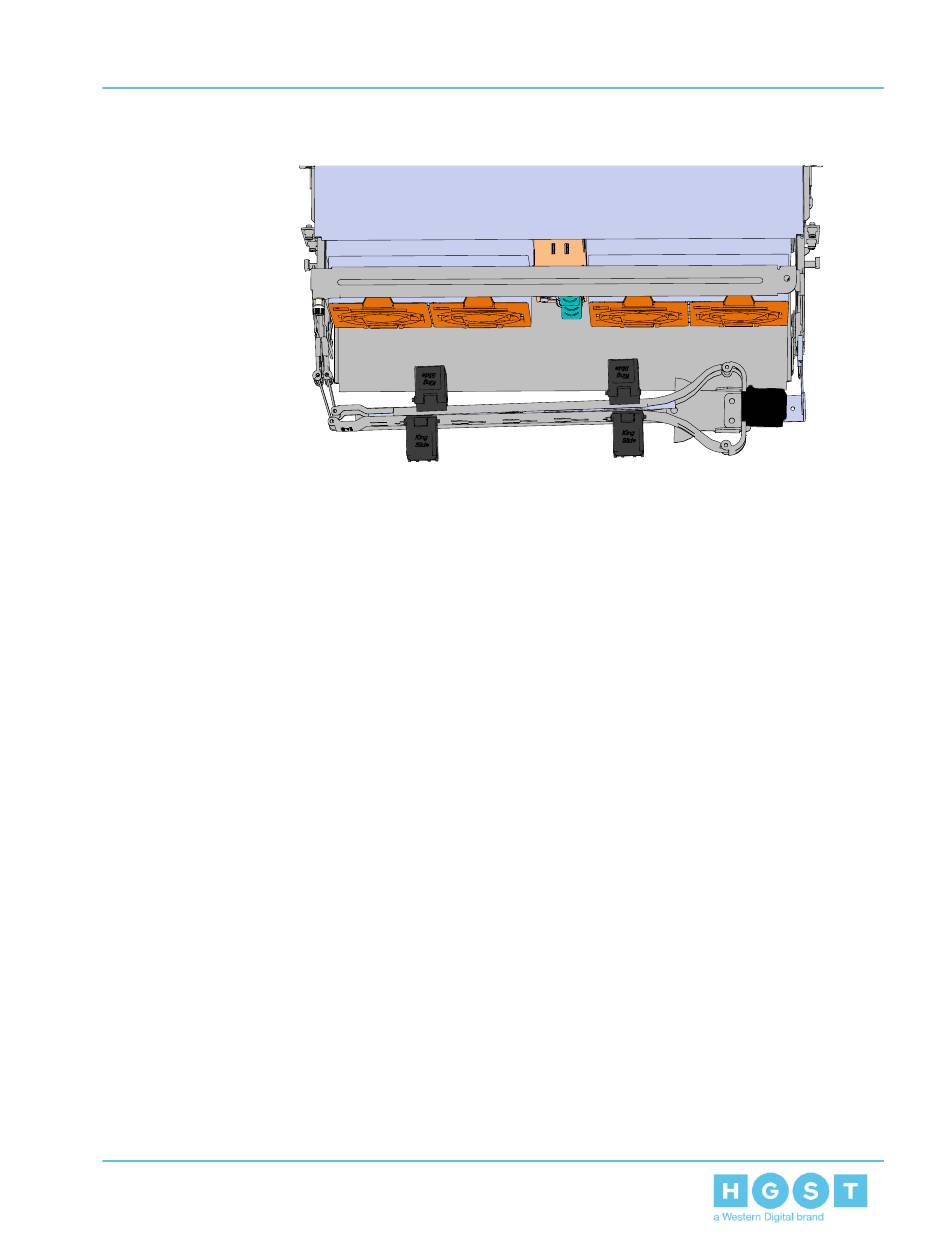

Figure 173: Upper CMA Orientation
b. Attach all three of the connectors to the brackets on the rails. There should be one at
the elbow side and two on the left hand side.
45. Install the crossbar onto the CMA mounting bracket.
a. Align the crossbar with the mounting peg facing down and pointing toward the CMA
mounting bracket.
