User Guide

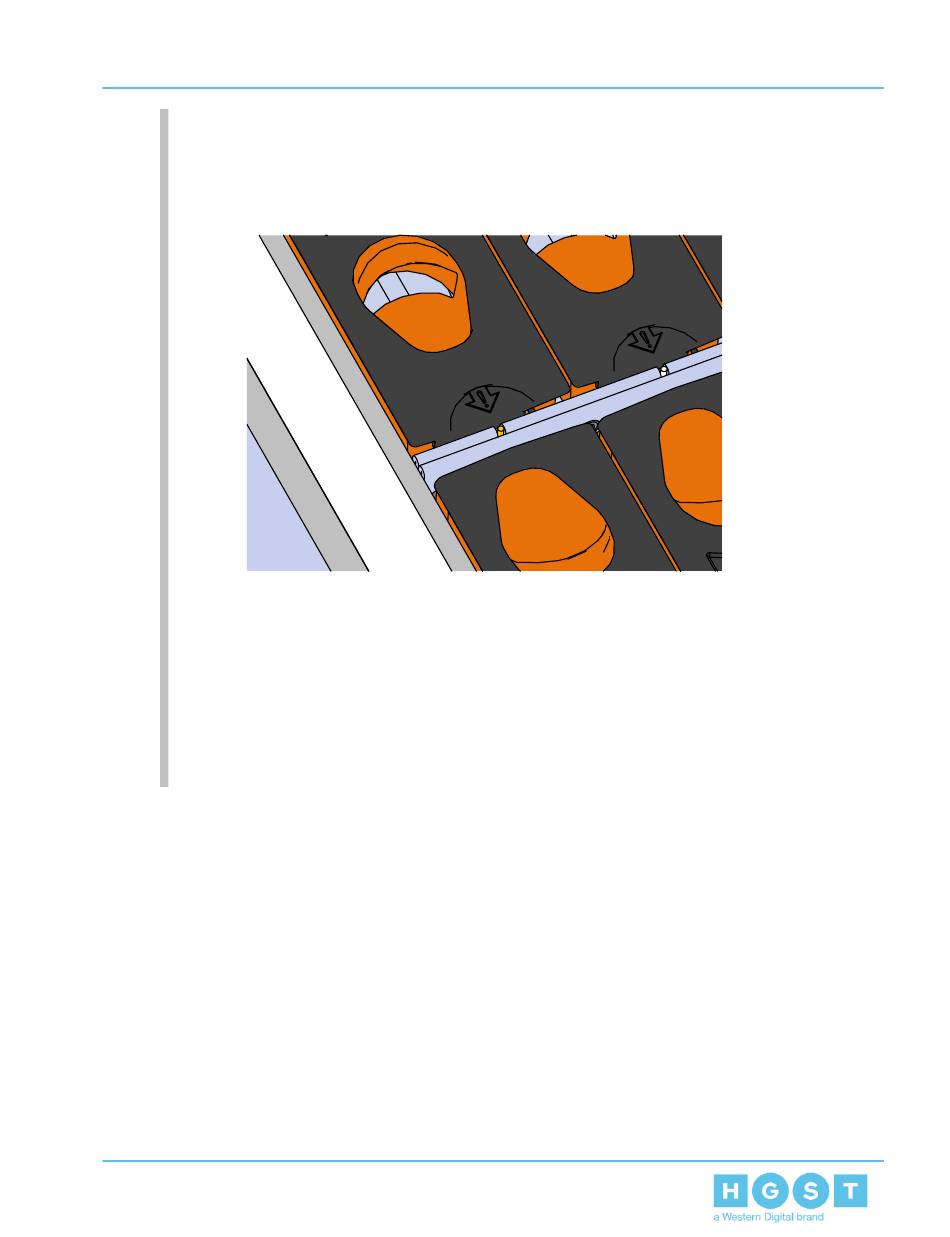

Figure 225: HDD Assembly LED
3. Install the Drive Assembly.
a. Ensure that the enclosure has been pulled out of the rack until the rail latches
engage.
b. Find the LED pointer on the top of the drive carrier. This pointer should point
toward the front of the unit as shown in the following image.
283
