User Guide
Note: Each cable must be given enough slack at the connector end to operate
smoothly. For the lower CMA allow 20" - 21" (508 – 533.4mm) between the
connector and the first basket.

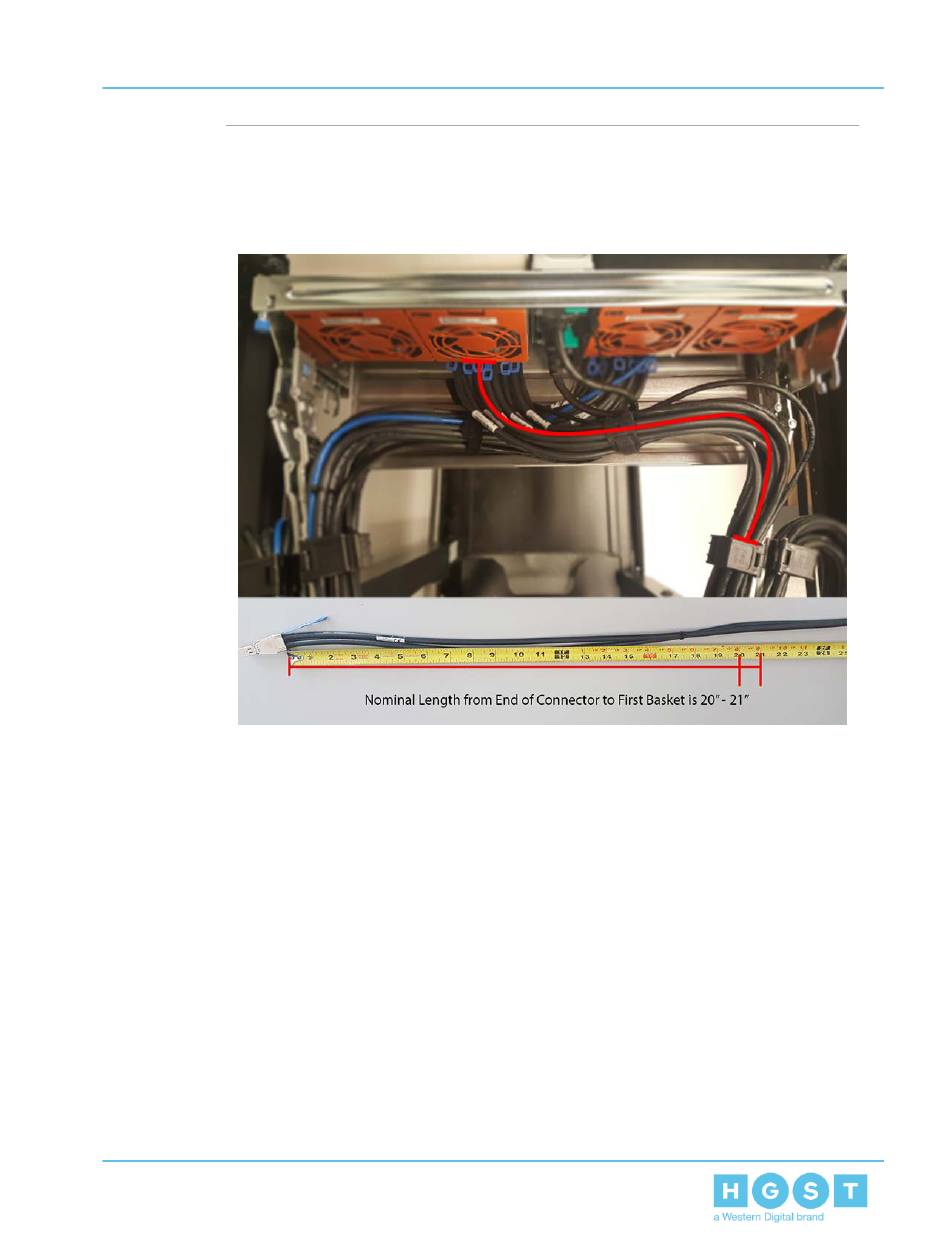

Figure 70: Nominal Cable Length at Connectors
h. Close all of the baskets.
i. If the Ultrastar Data102 is being installed in a rack and will subsequently be transported
inside that rack, it is important to use the included cable tie to wrap the CMA bundle
to ensure it does not get damaged during transport. If the Ultrastar Data102 is instead
being installed where it will operated, skip this step. Remember to remove the cable ties
after the enclosure has reached its final operational location.
j. Reconnect the CMA at the elbow to the connectors on the rail.
11. Cable the upper CMA.
a. Unlatch the elbow side of the CMA arm and swing it forward by pressing the blue button
that says "push" to unlatch it.
b. Gather the SAS cables, one power cable, and one Ethernet cable to install in the left
hand side.
c. Open all of the baskets
4.7 CMA Standard Replacement
93
4. Part Replacement
