User Guide

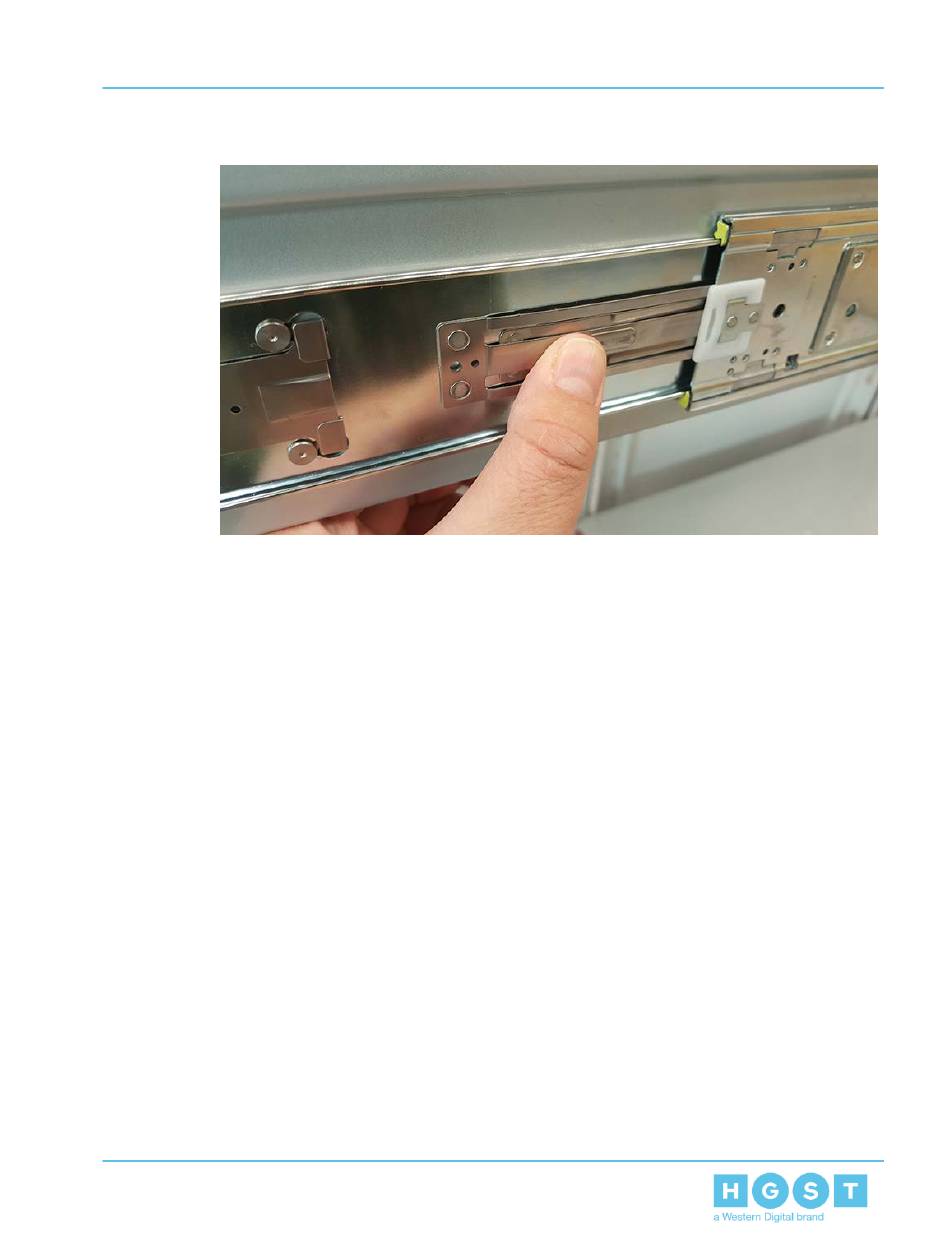

Figure 147: Inner Rail Safety Latch Release
19. Push the chassis back into the rack.
20. Locate the M5 x 12mm Philips Pan Head screws on the top cover of the enclosure that keep it
in place when the drawer is extended and unscrew them using a #2 Philips head screwdriver.
This will allow the top cover to move freely with the enclosure when the enclosure is removed.
165
4. Part Replacement
4.10 Chassis Replacement
