User Guide
Figure 44: Uninstalling PSU
b. Pull the PSU straight out with even pressure.
6. Remove the new PSU from its packaging.
7. Install the PSU.

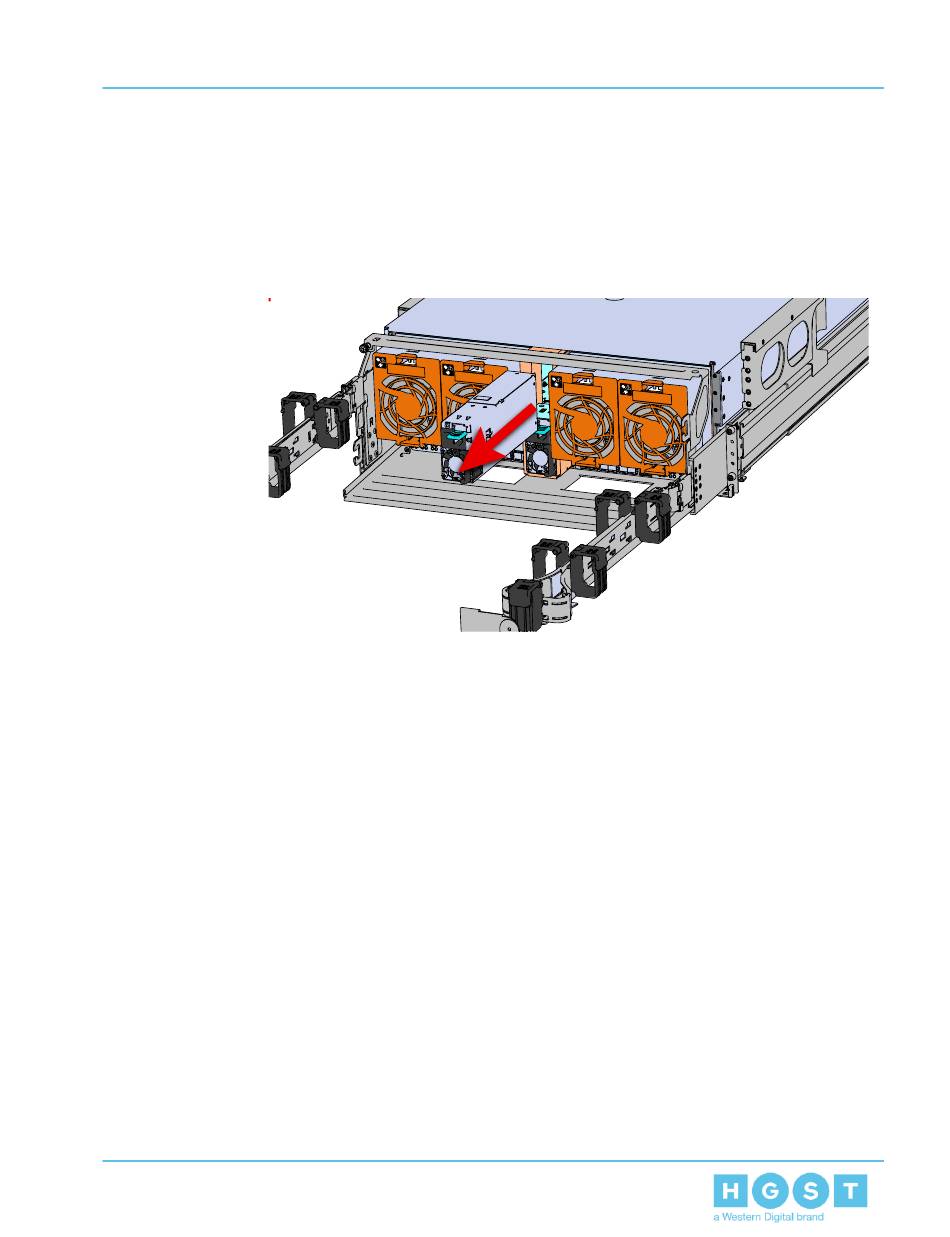

a. Align the PSU in the orientation shown in the following image.
b. Slide the PSU into the slot until it seats fully into the chassis.
67
4. Part Replacement
4.3 PSU Replacement
