g. If the Ultrastar Data102 is being installed in a rack and will subsequently be transported
inside that rack, it is important to use the included cable tie to wrap the CMA bundle
to ensure it does not get damaged during transport. If the Ultrastar Data102 is instead
being installed where it will operated, skip this step.
h. Close all of the baskets.
i. Reconnect the CMA at the elbow to connector A.
32. Test for binding in the extension of the CMA by gently pulling the enclosure out of the rack to
ensure the cables extend properly and that the system doesn't bind at all. If it does, examine
the point at which the binding occurred and adjust the seating of cables in the baskets, check
the connections to the rails, and examine the joints of the CMA arm to ensure that they are all
functioning properly.
33. Make sure the CMA is in operational position by folding the arm in toward the enclosure and
attaching the elbow end of the CMA to the connector that is attached to the rail. Verify that all of
the cabling is in functional order and does not bind or catch.
4.10 Chassis Replacement

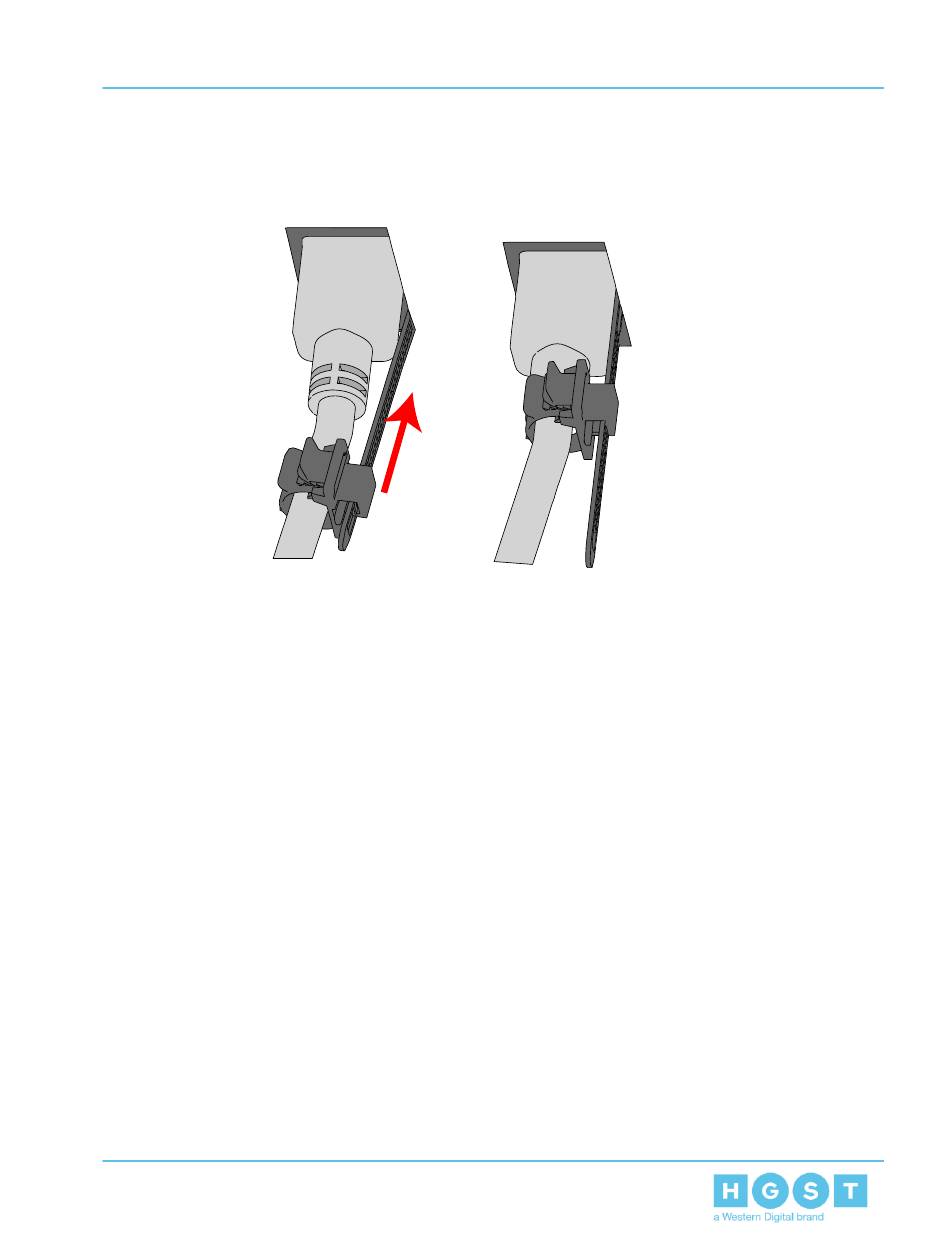

Figure 131: Cinching Cable Retention Clip
150
