User Guide

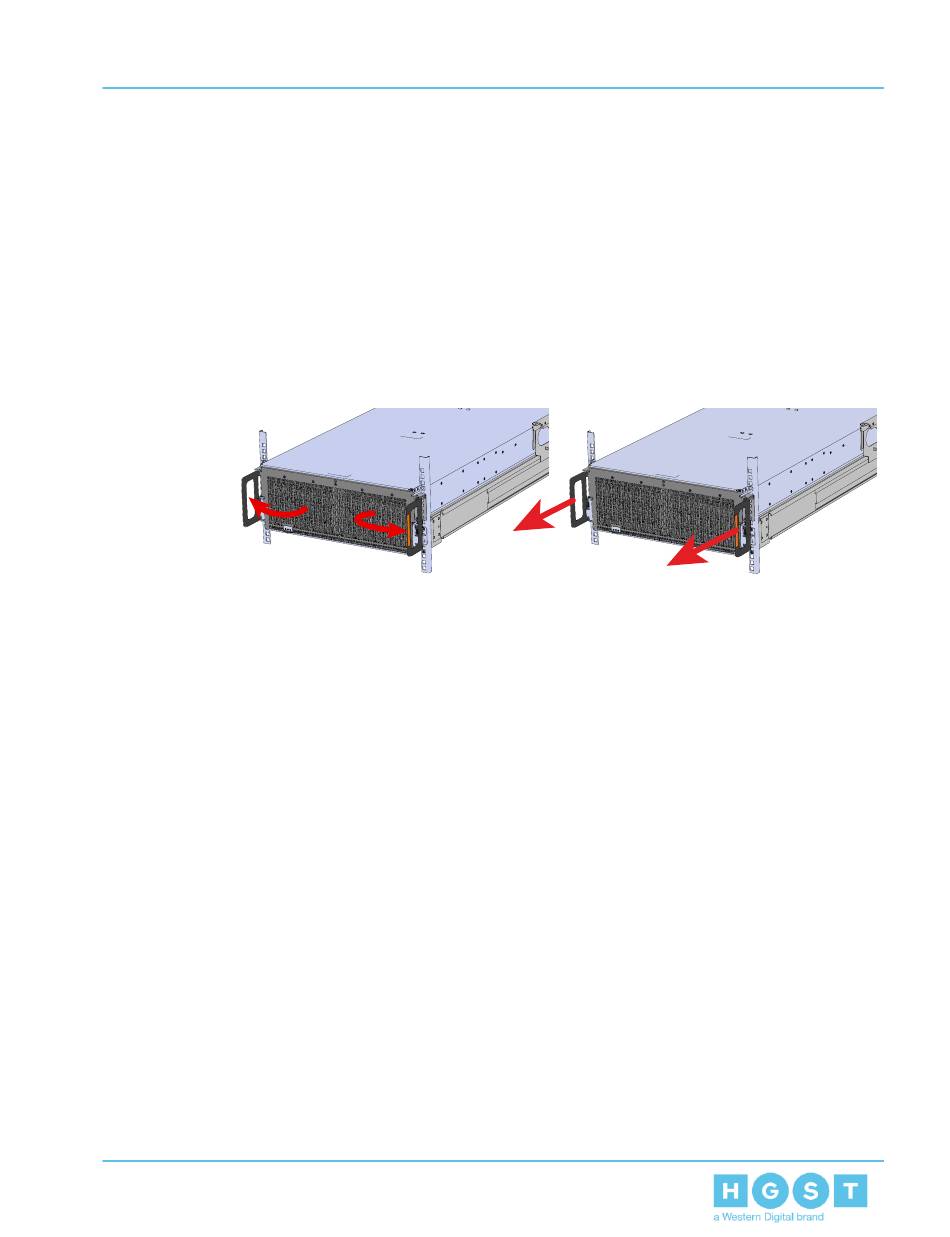

Figure 141: Chassis Handle Operation
12. Remove all of the drives from the chassis before uninstalling the chassis. Be prepared to label
the drives as they are removed so they can be reinstalled in the same location in the new
chassis.
13. Follow these steps to remove a Drive Assembly.
a. Find the latch release mechanism on the Drive Assembly being removed.
b. Insert a finger and a thumb into the latch release and pinch to unlatch the Drive
Assembly.
159
4. Part Replacement
4.10 Chassis Replacement
