User Guide

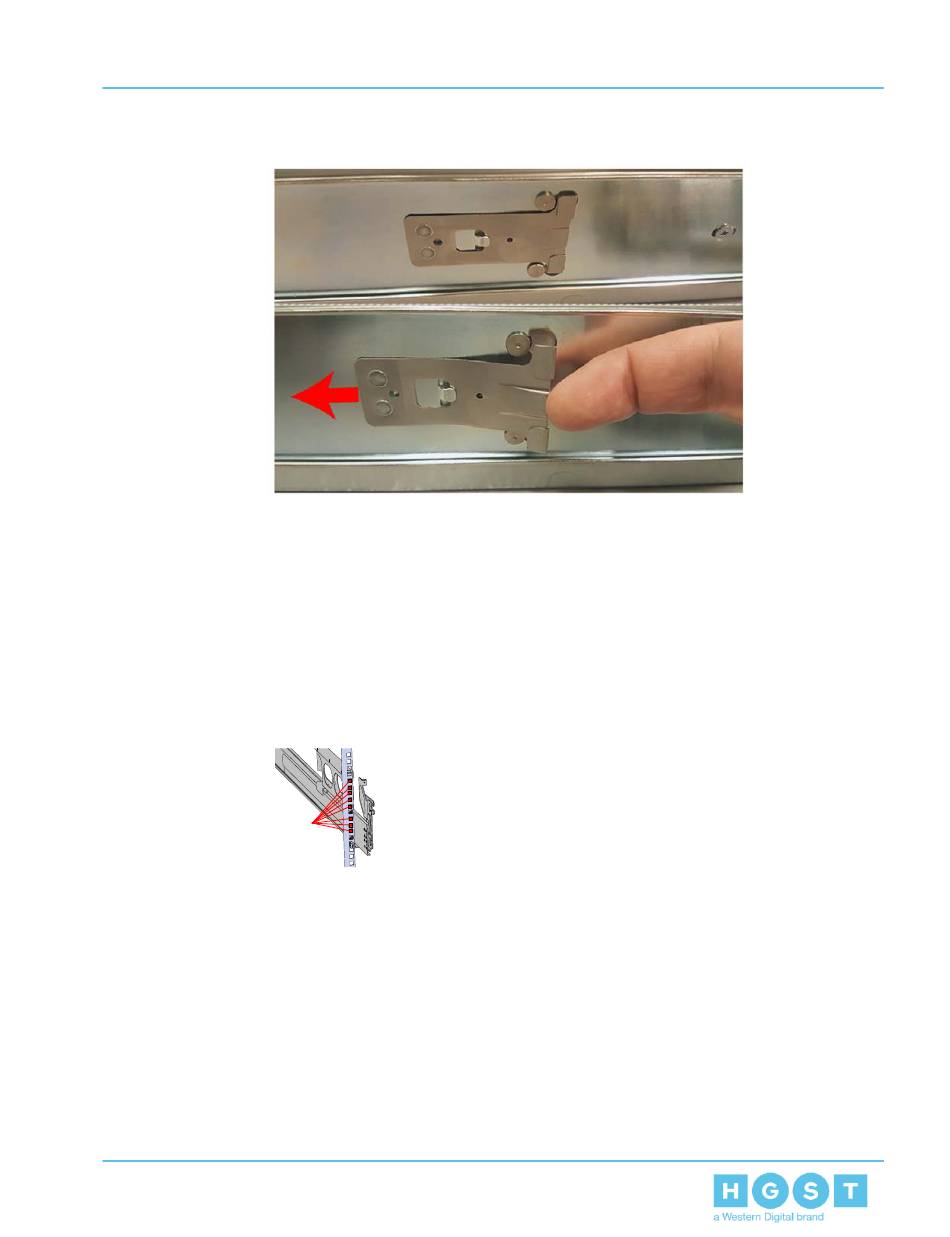

Figure 102: Inner Rail Spring Latch
c. Slide the inner rail toward the front of the enclosure to unlock it from the pegs that
secure it to the sidewall and pull it free.
16. Remove the screws that secure the rack rails to the rack.
a. Uninstall the alignment bracket by removing the screws that secure it to the rack posts
using the screw locations in the following image. Be careful, the alignment bracket will
be free once the screws are removed. Make sure you have a solid grip on it before
removing the final screw.
Figure 103: Rear Screw Locations
Screw Locations
b. Uninstall the rest of the screws in the rear rack rail.
c. Move to the front of the rack and remove the three screws that hold the rack latch
bracket to the front of the rack using a T15 Torx screwdriver. Be careful, the rack latch
bracket will be free once the screws are removed. Make sure you have a solid grip on it
before removing the final screw.
124
4. Part Replacement
4.9 Rails Replacement
