5. System Management
5.5 Daisy Chaining
User Guide

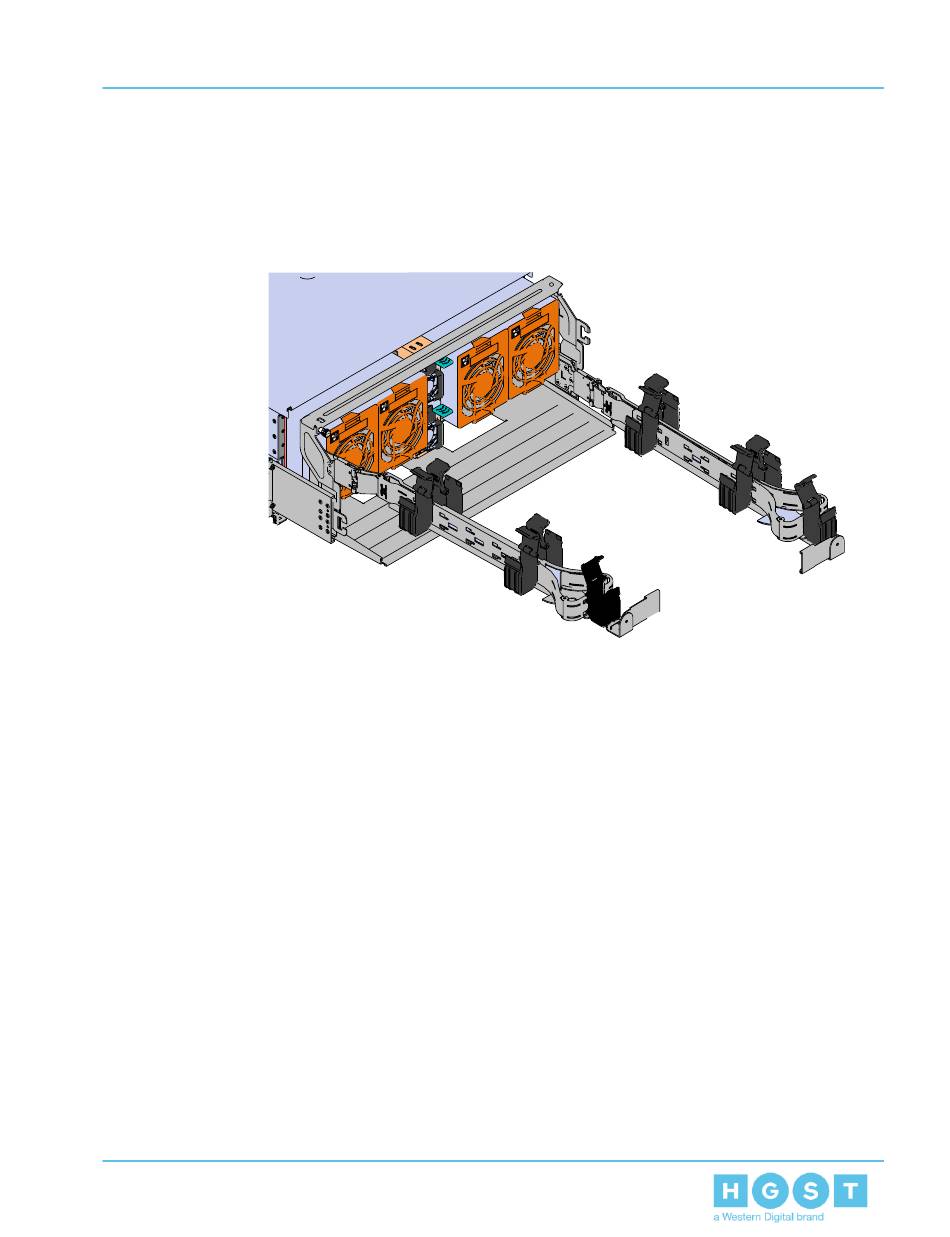

Figure 221: Open Baskets
a. Connect the SAS cables and route them through the baskets one at a time. Make sure
to follow the labels to make sure they are connected to the proper port.
b. Connect the power cable to the lower PSU and route it through each basket. The
following image shows the appropriate cable "criss-cross" pattern they should be
installed in.
