User Guide

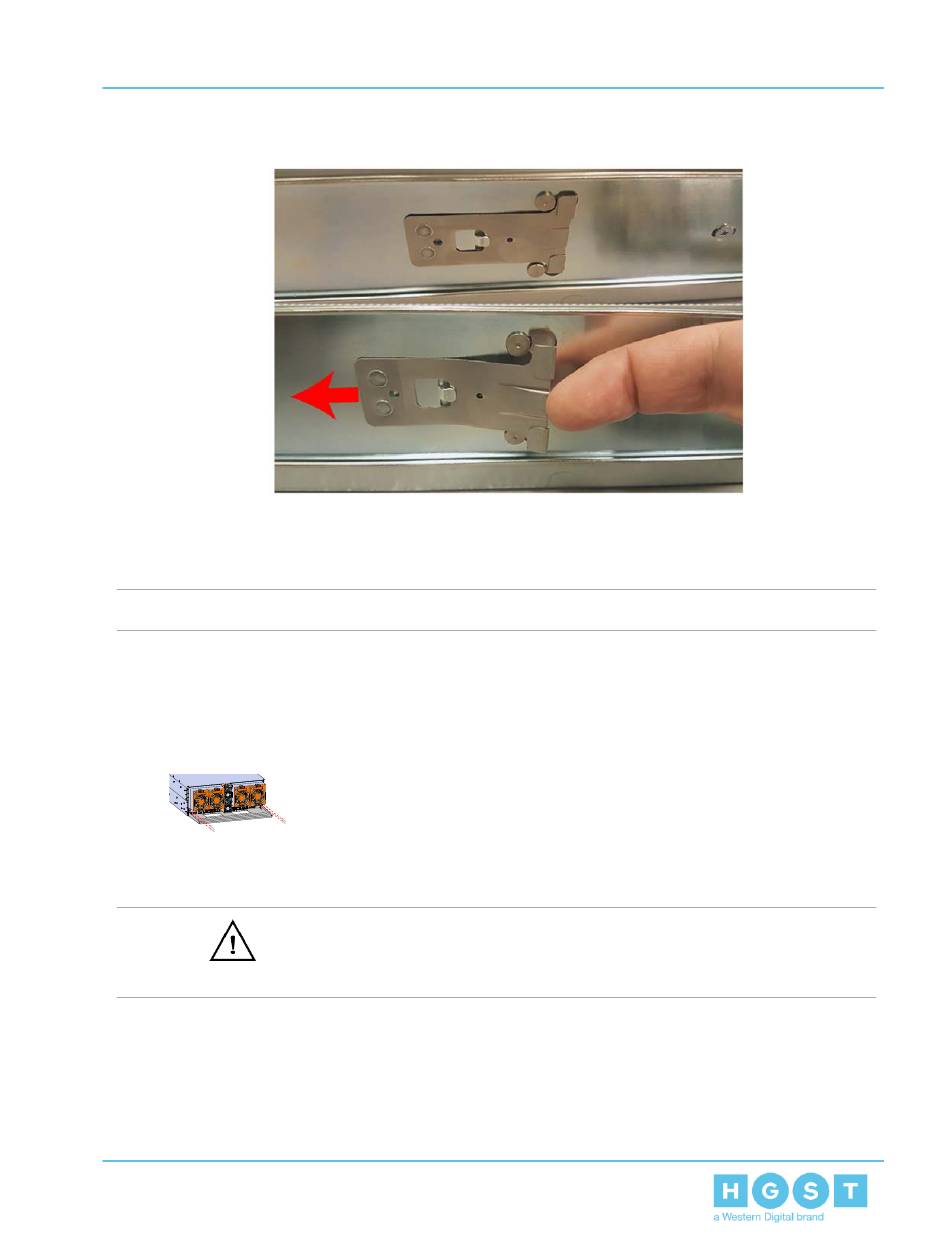

Figure 151: Inner Rail Spring Latch
c. Slide the inner rail toward the front of the enclosure to unlock it from the pegs that
secure it to the sidewall and pull it free.
Note: Follow the next step if the cable tray was installed.
24. Uninstall the Cable Tray by removing the M3 x 8mm screws using the long T10 Torx head
screwdriver.
Figure 152: Uninstalling the Cable Tray
Caution: Always install the top cover onto the enclosure before installing the chassis
into a rack. Not having the top cover installed may damage the alignment brackets.
25. Ensure the top cover is installed.
a. From the rear of the enclosure, align the top cover with the grooves on the top of the
chassis.
169
4. Part Replacement
4.10 Chassis Replacement
