User Guide

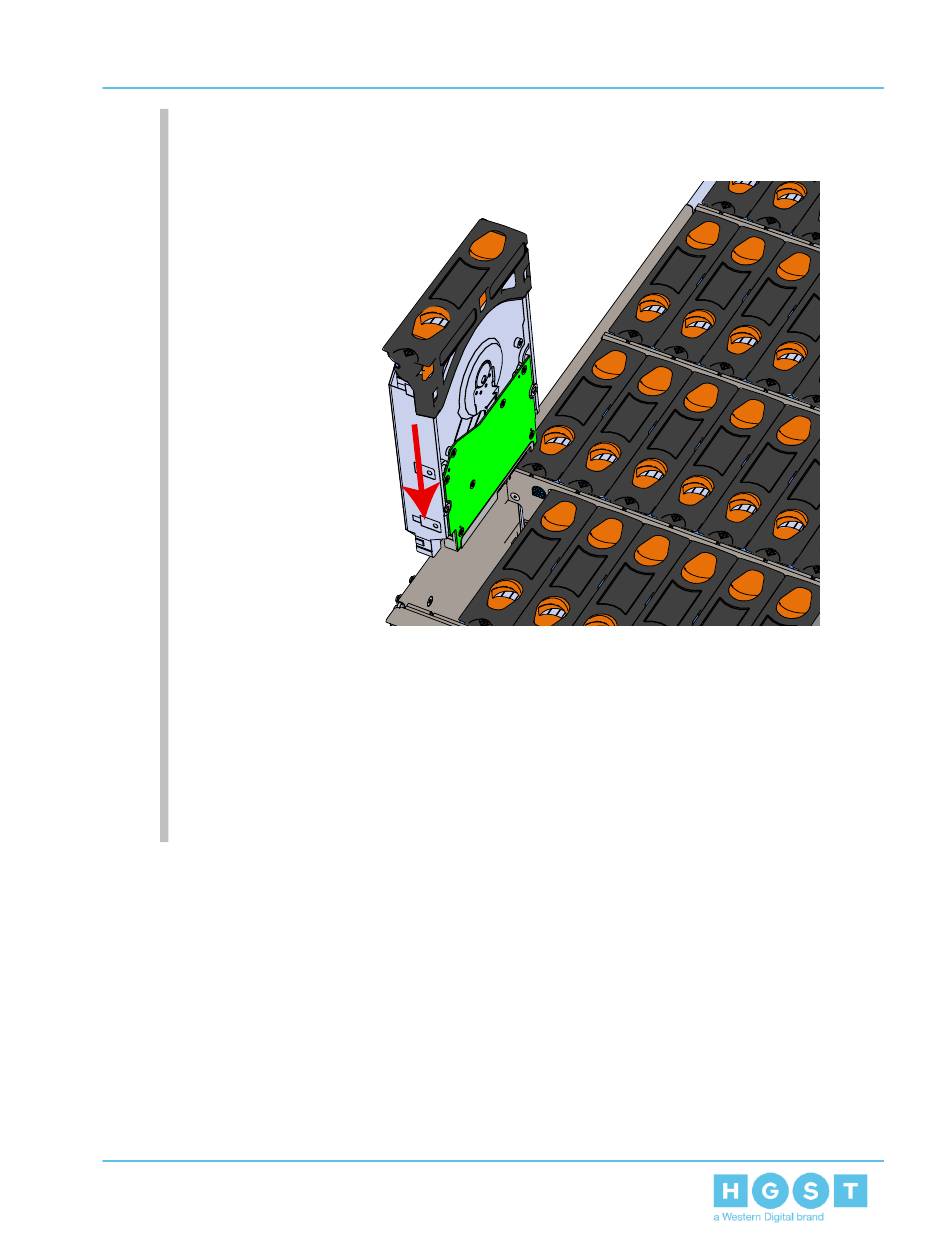

d. Pinch the latch release and carefully press downward to seat the Drive
Assembly the rest of the way.
4. Install the Drive Assembly.
a. Ensure that the enclosure has been pulled out of the rack until the rail latches
engage.
b. Find the LED pointer on the top of the drive carrier. This pointer should point
toward the front of the unit as shown in the following image.
Figure 227: Installing a Drive Assembly
285
6. Drives missing in the system management
5.5 Daisy Chaining
