User Guide

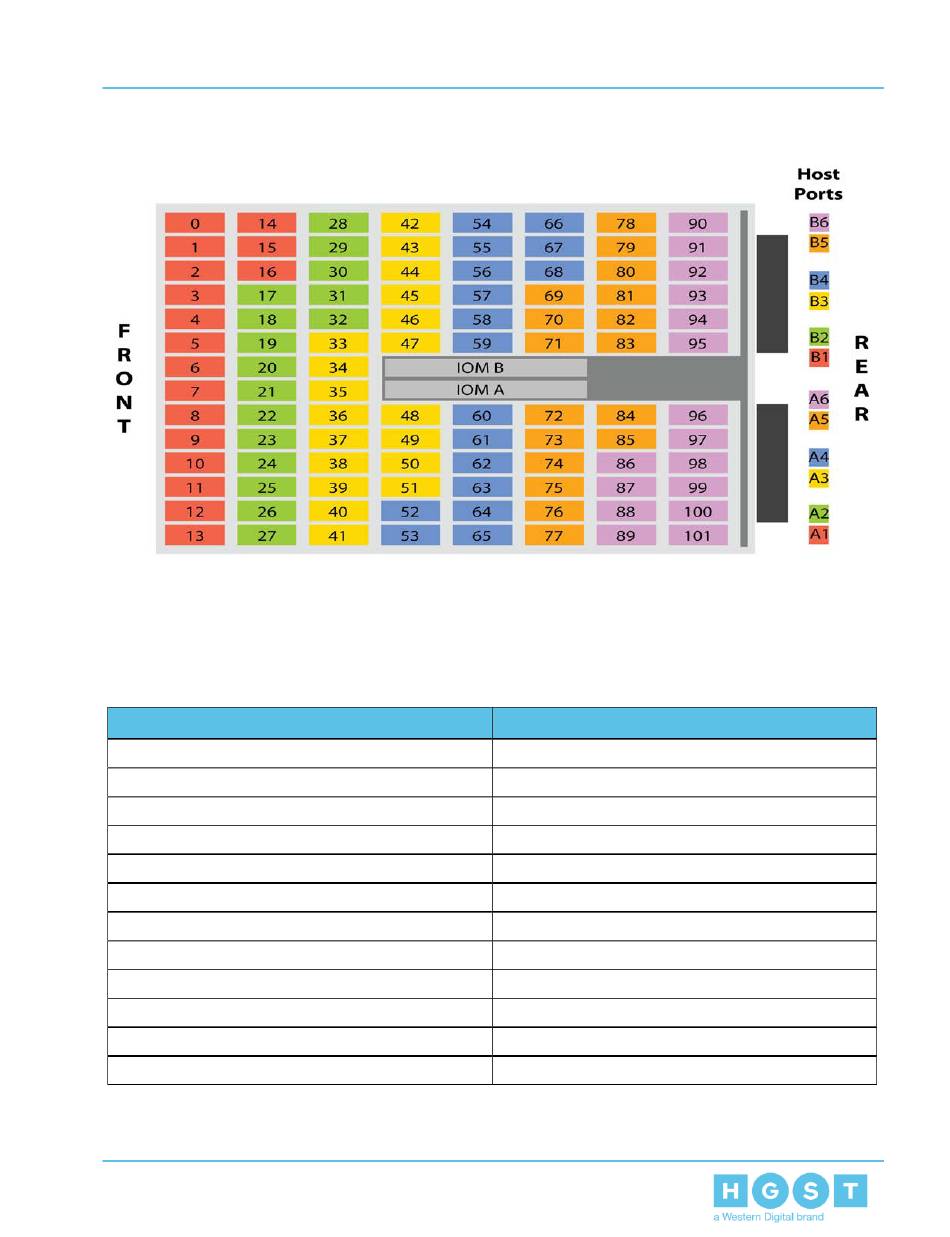

Figure 200: Configuration 1
Each SAS port in the following image matches the color of another set of drives in that specific zone
group. Connect the host servers to the enclosure using SAS cables in the Configuration listed in the
table below. The left side of the table displays the host connection and the right side displays the
enclosure IOM SAS port connection.
Table 37: SAS Cable connections for Configuration 1
Host connection (SAS Port)
Host 1
Host 1
Host 2
Host 2
Host 3
Host 3
Host 4
Host 4
Host 5
Host 5
Host 6
Host 6
Configuration 2:
Enclosure IOM connection (SAS Port)
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
230
5. System Management
5.3 Zoning
