4. Part Replacement
4.8 CMA Lite Replacement
User Guide

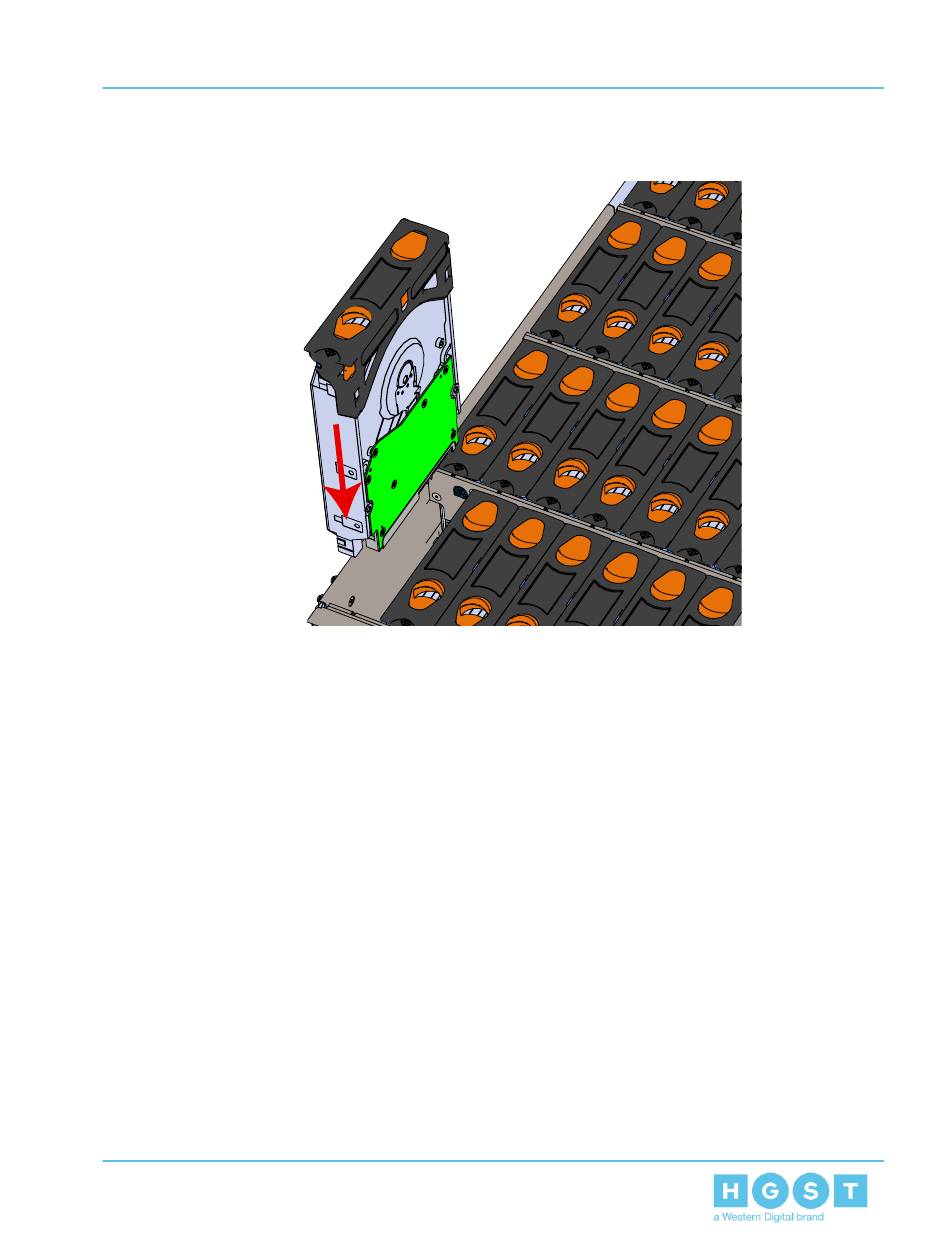

Figure 87: Installing a Drive Assembly
d. Pinch the latch release and carefully press downward to seat the Drive Assembly the
rest of the way.
16. Install each drive in the same way the first was installed. Make sure to follow the drive layout
shown in the following image.
109
