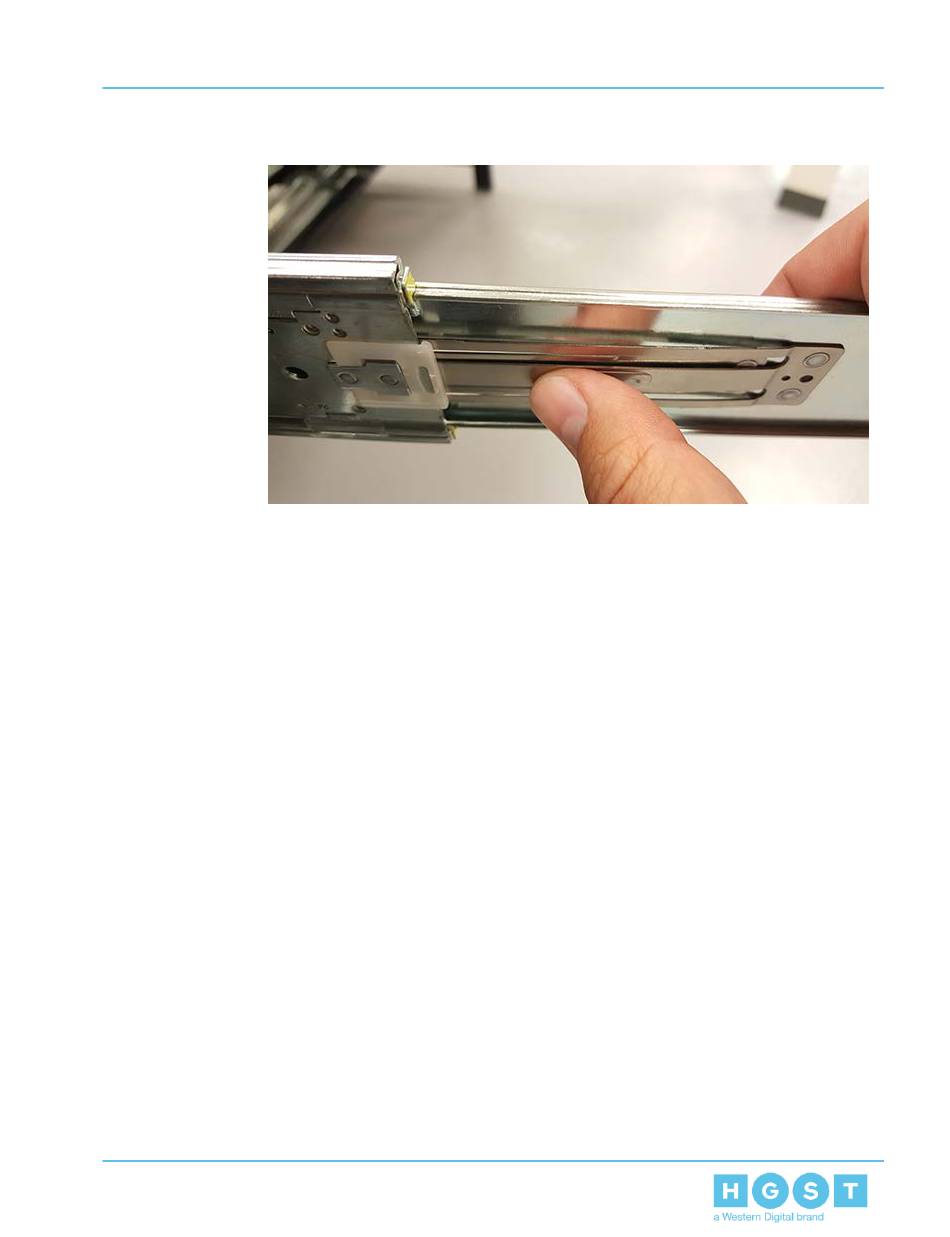

Figure 118: Safety Latch Release
e. As the chassis is slid into the rack, position one installer at the rear of the rack to
ensure that the pegs on the sides of the cover will slide correctly into the rear cover
alignment brackets on both sides of the rack. If the chassis does not install smoothly or
snags, check that the rear cover alignment brackets are not interfering with the chassis
sidewalls, and try again.
25. Secure the chassis top cover to the rack using the included M5 x 12mm Phillips Pan Head
screws and a Philips screwdriver as shown in the following image. These screws should be
tightened to 3.38-3.61 Nm / 30-32 in-lbf using a # 2 Philips Screwdriver.
138
4. Part Replacement
4.9 Rails Replacement
